| caution |
|
DIAGNOSTIC PROCEDURE |
STEP 1. Scan tool CAN bus diagnostics |
| Using scan tool MB991958, diagnose the CAN bus lines. |
Q.
Is the check result normal?
|
Go to Step 3. |
|
Repair the CAN bus lines. (Refer to GROUP 54C - Troubleshooting .) After repairing the CAN bus line, go to Step 2. |
|
STEP 2. Check whether the DTC is reset. |
Q.
Is DTC No. C161C set?
|
Go to Step 3. |
|
This diagnosis is complete. |
|
STEP 3. ACD proportioning valve single unit check |
| Measure the resistance of ACD proportioning valve. |
| Standard value: 3.7 ± 0.3 Ω |
Q.
Is the check result normal?
|
Go to Step 4. |
|
Replace the hydraulic unit. (Refer to GROUP 27 - Hydraulic Unit .) Then go to Step 8. |
|

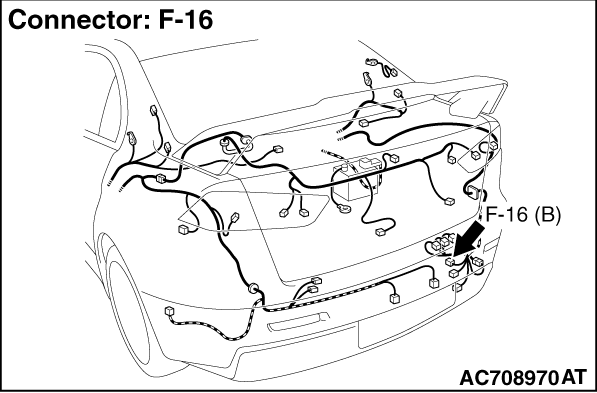

STEP 4. AWC-ECU connector, intermediate connector, proportioning valve (for ACD) connector check: C-46, D-11, F-16 |
Q.
Is the check result normal?
|
Go to Step 5. |
|
Repair the defective connector. Then go to Step 8. |
|

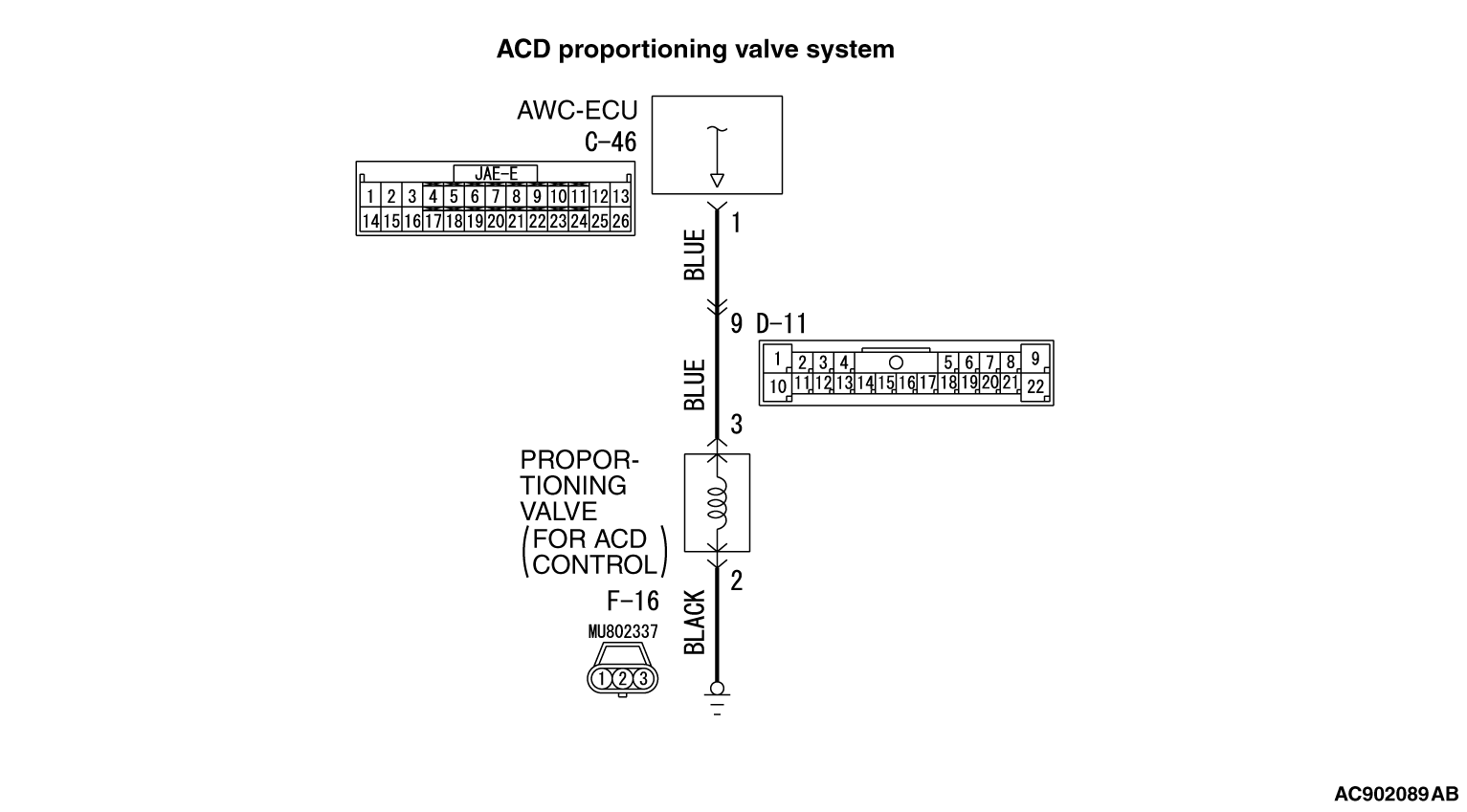

STEP 5. Check the wiring harness between C-46 AWC-ECU connector terminal No. 1 and F-16 proportioning valve (for ACD) connector terminal No. 3 and between F-16 proportioning valve (for ACD) connector terminal No. 2 and body ground. |
| Check the output line and ground line for open or short circuit. |
Q.
Is the check result normal?
|
Go to Step 6. |
|
Repair the wiring harness. Then go to Step 8. |
|
STEP 6. Scan tool service data |
Item 92: ACD proportional valve indicator current (Refer to service data reference table .) |
Q.
Is the check result normal?
|
Go to Step 7. |
|
Replace the AWC-ECU.(Refer to .) Then go to Step 7. |
|
STEP 7. Check whether the DTC is reset. |
Q.
Is DTC No. C161C set?
|
Replace the AWC-ECU.(Refer to .) Then go to Step 8. |
|
Intermittent malfunction. (Refer to GROUP 00 - How to Cope with Intermittent Malfunction .) |
|
STEP 8. Check whether the DTC is reset. |
Q.
Is DTC No. C161C set?
|
Return to Step 1. |
|
This diagnosis is complete. |
|
