1.Remove the radiator condenser tank. (Refer to GROUP 14, Radiator  ).
|
|
2.
| caution |
Check the drive belt tension after turning the crankshaft
clockwise one turn or more.
|

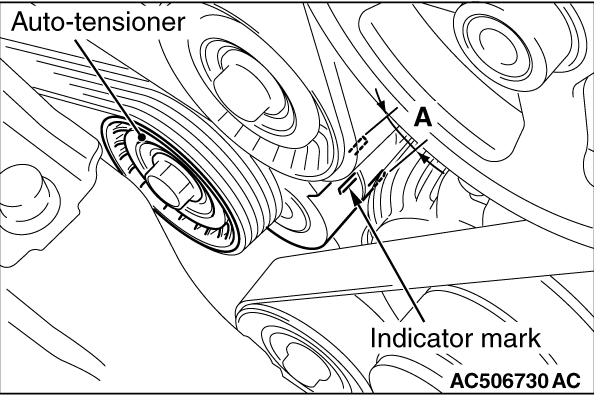

Make sure that the indicator mark on the auto-tensioner is within the area marked with
A in the illustration.
3.If the mark is out of the area A, replace the drive belt (Refer to ).
| note |
The drive belt tension check is not necessary as the auto-tensioner is adopted.
|
4.Install the radiator condenser tank. (Refer to GROUP 14, Radiator ).
|
