CODING LIST


caution With the ETACS functions being customized, if any of the ETACS-ECU variant coding and option coding items are changed, the customized contents are reset. In such case, the functions need to be recustomized.
Before troubleshooting, check that the coding data written into the engine control module, TC-SST-ECU and ETACS-ECU are normal. If they are not the same as the initial settings, various functions and systems will not work correctly.

VARIANT CODING
Required Special Tools:
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)

    • MB991824: Vehicle Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
The coding data can be checked by operating scan tool MB991958.
note For details on how to use the scan tool MB991958, refer to the "M.U.T.-III Owner’s manual".

caution To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

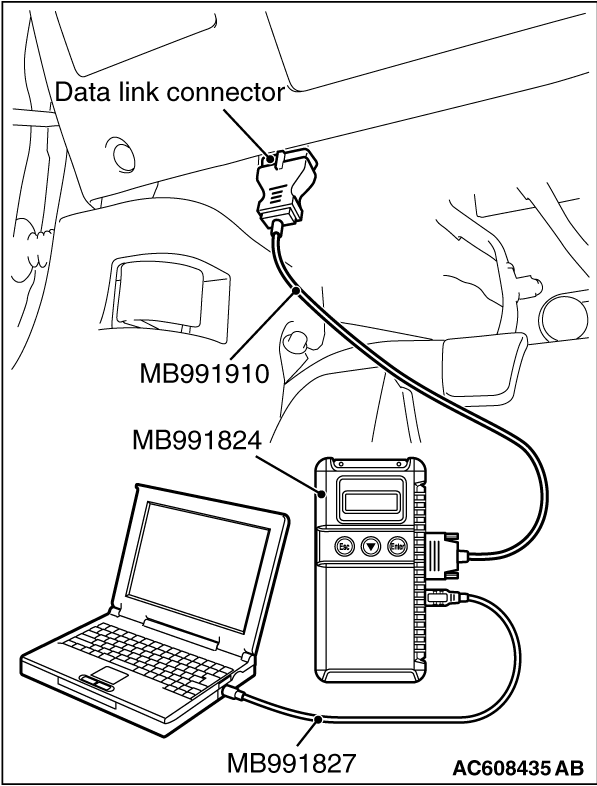

1.Ensure that the ignition switch is at the "LOCK" (OFF) position.
2.Start up the personal computer.
3.Connect special tool MB991827 to special tool MB991824 and the personal computer.
4.Connect special tool MB991910 to special tool MB991824.
5.Connect special tool MB991910 to the data link connector.
6.Turn the power switch of special tool MB991824 to the "ON" position.
note When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
7.Start the "M.U.T.-III system" on the personal computer.
8.Turn the ignition switch to the "ON" position.
9.Select "System select" from the start-up screen.
10.Select "From 2006 MY" under "Model Year". Check that "Vehicle Information" contents are correct.
11.On the system list screen, select "MPI/GDI/DIESEL" to check the engine control module data, "AT/CVT/A-MT/TC-SST" to check the TC-SST-ECU data, and "ETACS" to check the ETACS-ECU data.
note If "Loading Option Setup" list is shown, click appropriate box.
12.Select "Coding."
13.Select "Coding information & copy."
14.If the displayed coding information is different from the corresponding initial setting in the list, replace the ECU with a correctly coded one. For replacement of the engine control module, refer to GROUP 13A, Engine Control Module . For replacement of the TC-SST-ECU*, refer to GROUP 22C, Transaxle Assembly . For replacement of the ETACS-ECU, refer to GROUP 54A, ETACS .
note *: TC-SST-ECU cannot be disassembled. Thus, replace the transaxle assembly.

ENGINE CONTROL MODULE CODING DATA LIST
Item name
 Initial value
Final gear ratio
 5MT/6MT <5M/T>
4.062 <TC-SST>
Tire circumference
 2026mm
IMMOBILIZER
 Present
ABS
 Not present
A.S.C.
 Present
S/W variation
 No.1

TC-SST-ECU CODING DATA LIST
Item name
 Initial value
Vehicle line
 LANCER EVO
Destination
 U.S.
Tire size
 245/40R18
Cruise control
 Present
A.S.C.
 Present
Turbo charger
 T/C(INCONEL-AL)

ETACS-ECU CODING DATA LIST
Item name
 Initial value
Vehicle line
 LANCER EVO
Model year
 (Displays the model year)
SST oil cooling fan
 Not present
Destination
 U.S.
Transaxle
 5MT <5M/T>
TC-SST <TC-SST>
Engine type
 2.0L D4 VVT T/C
Engine power
 Normal
Handle side
 LHD
Chassis Type for A.S.C.
 Type 1
OSS
 Not present
Final drive
 AWD FF Base
Transfer
 ACD
IG off delay control
 Disabled <5M/T>
Enable <TC-SST>
Dead lock operation customize
 Disabled
After wipe customize
 Enabled(def.D)
Tire circumference
 2026mm
Fuel tank
 Not used
DRL*1 type
 Dimming DRL w/ P <halogen type>
IndependentDRL/P <discharge type>
Smart entry system
 Not present or Type A or Type C
TPMS*1
 Present
Keyless entry*2
 Present
Air bag Auto Hazard
 Not Present
Immobilizer
 Type B <Vehicles for USA>
Type A <Vehicles for CANADA>
Cruise control
 Present
Corner sensor
 Not present
Headlight auto leveling device
 Not present
Oil level warning
 Not present
Water separate warning
 Not present
Speed meter scale
 Not used
Idle neutral control
 Not used
Theft alarm sensor
 Not present
T/M oil cooler
 Not present
Theft sensor gain setting
 Type 1
Side air bag
 Present
ACC power auto cut
 Default enabled
Number of speaker*2
 Speaker less or Premium or 6 speakers
Seat material*2
 Fabric or Leather
Auto light control*2
 No/Cng Ng or Hi RLS/chg Ng
Front differential
 Helical
Rear differential
 AYC
Power window type
 Type P4
Sun roof type
 Not present or Type S4
WCM
 Present
OCM
 Present
ORC
 Present
A/C
 Present
AUDIO*2
 Not present or Present
AND*2
 Not present or Present
Siren answer
 Disabled
Theft alarm siren
 Not present
CAMERA
 Not present
Corner sensor control unit
 Not present
Electric Slide door (Left)
 Not present
Electric Slide door (Right)
 Not present
ETG
 Not present
ESS ECU
 Not present
HFM*2
 Not present or Present
Intelligent washer customize
 Enabled(def.E)
Headlight Leveling system type
 Type1/No present
Rear wiper mode
 Without Lo cntl
10MY SPEC
 Enable
Rear wiper by reverse customize
 Disabled
ABS
 Not present
A.S.C.
 Present
Auto fold mirror
 SPD/Not present
SAS
 Present
4WD/AWC
 Not present
TCM
 Not present <5M/T>
Present <TC-SST>
ACTV_STB
 Not used
Door unlock by IG lock customize
 Enabled(def.D)
Rheostat cancel mode
 Available
EPS
 Not present
ACDAYC
 Present
Coming home light customize
 Enabled(def.E)
Welcome light customize
 Enable(d.Small)
Indirect light
 Not present
Power window Dr
 Present
Power window As
 Not present
Power window RR
 Not present
Power window RL
 Not present
ESS by stoplight
 Not present
Sun roof
 Not present or Present
RLS*2
 Not present or Present
Washer function improvement
 Disabled
IG key illumination
 W/ getting off
Turn signal bulb
 21W+21W+5W
Rear wiper
 Disabled
Fold mirror
 Disabled
Headlight
 4 beams*3
Comfort Hazard
 Disabled
Headlight washer
 Disabled
Front fog light mode
 A spec.
Front fog light*2
 Present
Rear fog light*2
 NotPresent/ChgOk
Room light delay timer /door&H/L
 Long
Room light by H/L
 Full
Gate/Trunk light
 Mode-1 (trunk)
Headlight auto cut mode
 C-spec
Headlight auto cut
 Enable
Door lock system
 A-spec(NAS)
Auto door lock/unlock
 Disabled
key remainder unlock
 B-spec/Dr and As
Horn type*2
 Dual horn
Gate/trunk opener mode
 Present
Cooling fan
 Relay control
Security alarm mode
 C-spec
Security alarm function
 Present/Chg Ng
Pre-alarm
 Not present
Multi mode RKE
 Disabled
Gate/Trunk
 Trunk type
Manner Switch
 NotPresent/ChgNg
Remote engine starter*2
 Present/Chg Ok
Panic Alarm
 Enable
Roomlight improvement
 Enable
Front wiper
 Speed Sensitive or Rain Sensitive
Comfort flasher type
 Present/Chg Ok
Dome light center switch
 Not present
Wiper washer check bulb*2
 Present
AUDIO/S.RADIO type
 AM 1kHz step or Other
H/L leveling type
 Not present
AFS/ACL*1 type
 Not present
ESS by turn light
 Not present
Compressor type*2
 No compressor or Scroll 90cc
Temperature type
 Celsius or Fahrenheit
Rear view camera
 Not present
Nose view camera
 Not present
Side view camera
 Not present
Average speed
 Available
Vehicle language status
 English
Fuel amount
 Not used
Fuel consumption scale
 L/100km <Vehicles for USA>
MPG(US) <Vehicles for CANADA>
Speed gauge tolerance
 U.S.
Coolant temp gauge threshold
 Normal
Frost warning threshold
 U.S.
Distance to empty
 Available
Average fuel consumption
 Available
Instant fuel consumption
 Available
Time traveled
 Not available
Distance traveled
 Not available
Fuel used
 Not available
Trip autoreset IG OFF
 Available
Variable Speed Alarm
 Not available
Rest reminder
 Available
Instant speed
 Not available
Seat belt reminder control type
 AABT
Seat belt reminder flashing
 Available
Seat belt reminder indicator
 D&P independent
Reverse alarm
 Not available
Key reminder
 Available
Lighting monitor
 Available
GCC speed alarm
 Not available
Condition tone alarm
 Not available
Rent-a-car mode IG-OFF always
 Available
Rent-a-car mode IG-OFF door open
 Available
Service reminder schedule table
 NAS 20
ACD control display
 Not used
TPMS information
 32 psi
Horn chirp by keyless
 Present/Chg Ok
Rear S/R Unlock Output
 Not present
Trailer turn detection
 Present
Shift Lever
 Not present <5M/T>
Present <TC-SST>
AFS/ACL/Leveling
 Not present
Satellite Radio*2
 Not present or Present
Display opening type
 MMC
F.A.S.T. auto lock customize
 Not used
DRL function
 Present/Chg Ng
FACU
 Not present
S-AWC Control display
 Available
Diesel particulate filter
 Not present
Language mode
 Not available or Available
WSS
 Not present
Door Unlock Mode Customize*2
 Disabled
RLS overwipe type
 Type 1
RLS WS type
 Type 2 (Green)
Interior illumination customize
 Disabled
note
  • *1: TPMS is an abbreviation of Tire Pressure Monitoring System, DRL of Daytime Running Light and AFS of Adaptive Front lighting System.
  • *2: The setting can be changed by the option coding. Refer to .
  • *3: Although the dual-light discharge type is employed, it is displayed as "4 beams"

OPTION CODING


caution
  • If there is any item indicated by the option coding after equipment change, set ETACS-ECU so that the option coding data corresponds with the equipment content. Functions and systems do not work normally if the setting does not correspond with the equipment.
  • With the ETACS functions being customized, if any of the ETACS-ECU variant coding and option coding items are changed, the customized contents are reset. In such case, the functions need to be recustomized.
The ETACS-ECU option coding data can be checked or changed by operating scan tool MB991958.



LIST
Item name
Number of speaker
Seat material
Auto light CNTL
AUDIO (CAN)
AND
HFM (hands free-ECU)
Rain Light Sensor
Front fog light
Rear fog light
Horn type
Remote engine starter
Wiper washer check bulb
Compressor type
Satellite Radio
Keyless
Door Unlock Mode Customize
