Inspection Procedure 3: ETACS-ECU does not receive any signal from the key reminder switch.

COMMENTS ON TROUBLE SYMPTOM

The key reminder switch input signal is used for the operation judgment of the functions below. If the signal is abnormal, these functions will not work.

Ignition key reminder function
Central door locking
Keyless entry system
KOS
Ignition key cylinder illumination light
Interior light

TROUBLESHOOTING HINTS

The key reminder switch may be defective
The ETACS-ECU may be defective
The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set
MB992006: Extra Fine Probe

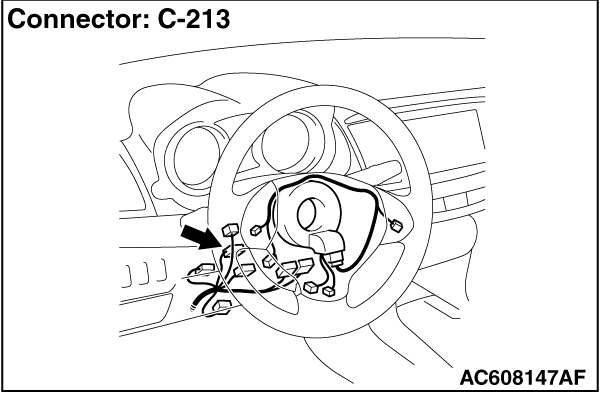

STEP 1. Check key reminder switch connector C-213 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is key reminder switch connector C-213 in good condition?

	Go to Step 2.

	Repair or replace the damaged component(s) (Refer to GROUP 00E, Harness Connector Inspection ). Check that the input signal of key reminder switch is normal.

STEP 2. Check the key reminder switch.

Disconnect key reminder switch connector C-213. Then check continuity between terminals.

Ignition key	Tester connection	Specified condition
Removed	2 - 3	Continuity exists (2 ohms or less)
Inserted	2 - 3	Open circuit

Q. Is the key reminder switch in good condition?

	Go to Step 3.

	Replace the key reminder switch. Check that the input signal of key reminder switch is normal.

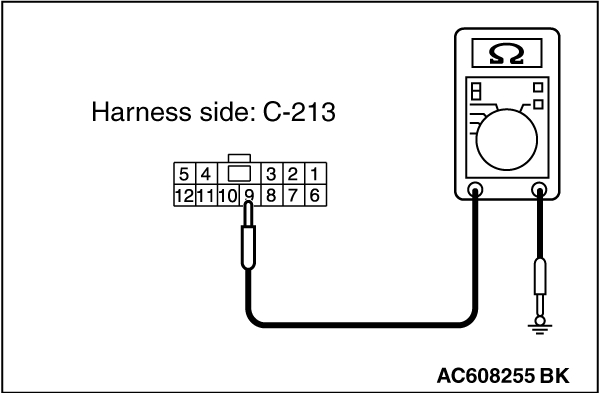

STEP 3. Check the ground circuit to the key reminder switch. Measure the resistance at key reminder switch connector C-213.

(1)Disconnect key reminder switch connector C-213 and measure the resistance available at the wiring harness side of the connector.

(2)Measure the resistance value between terminal 2 and ground.

The resistance should be 2 ohms or less.

Q. Is the measured resistance 2 ohms or less?

Go to Step 5.

Go to Step 4.

STEP 4. Check the wiring harness between key reminder switch connector C-213 (terminal 2) and ground.

Check the ground wires for open circuit.

Q. Is the wiring harness between key reminder switch connector C-213 (terminal 2) and ground in good condition?

	No action is necessary and testing is complete.

	The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Check that the input signal of key reminder switch is normal.

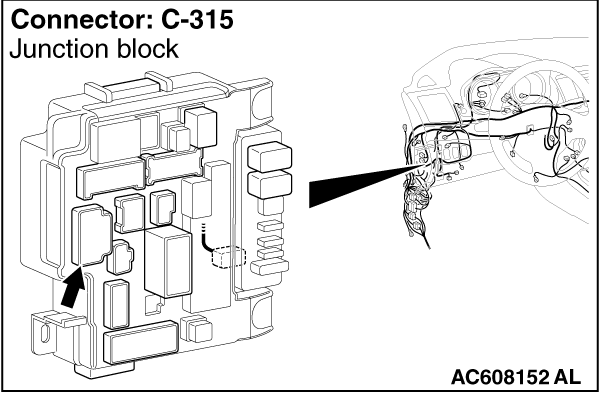

STEP 5. Check ETACS-ECU connector C-315 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is ETACS-ECU connector C-315 in good condition?

	Go to Step 6.

	Repair or replace the damaged component(s) (Refer to GROUP 00E, Harness Connector Inspection ). Check that the input signal of key reminder switch is normal.

STEP 6. Check the wiring harness between key reminder switch connector C-213 (terminal 3) and ETACS-ECU connector C-315 (terminal 13).

Check the output lines for open circuit and short circuit.

Q. Is the wiring harness between key reminder switch connector C-213 (terminal 3) and ETACS-ECU connector C-315 (terminal 13) in good condition?

	Replace the ETACS-ECU. Check that the input signal of key reminder switch is normal.

	The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Check that the input signal of key reminder switch is normal.
