REMOVAL AND INSTALLATION

			Removal step

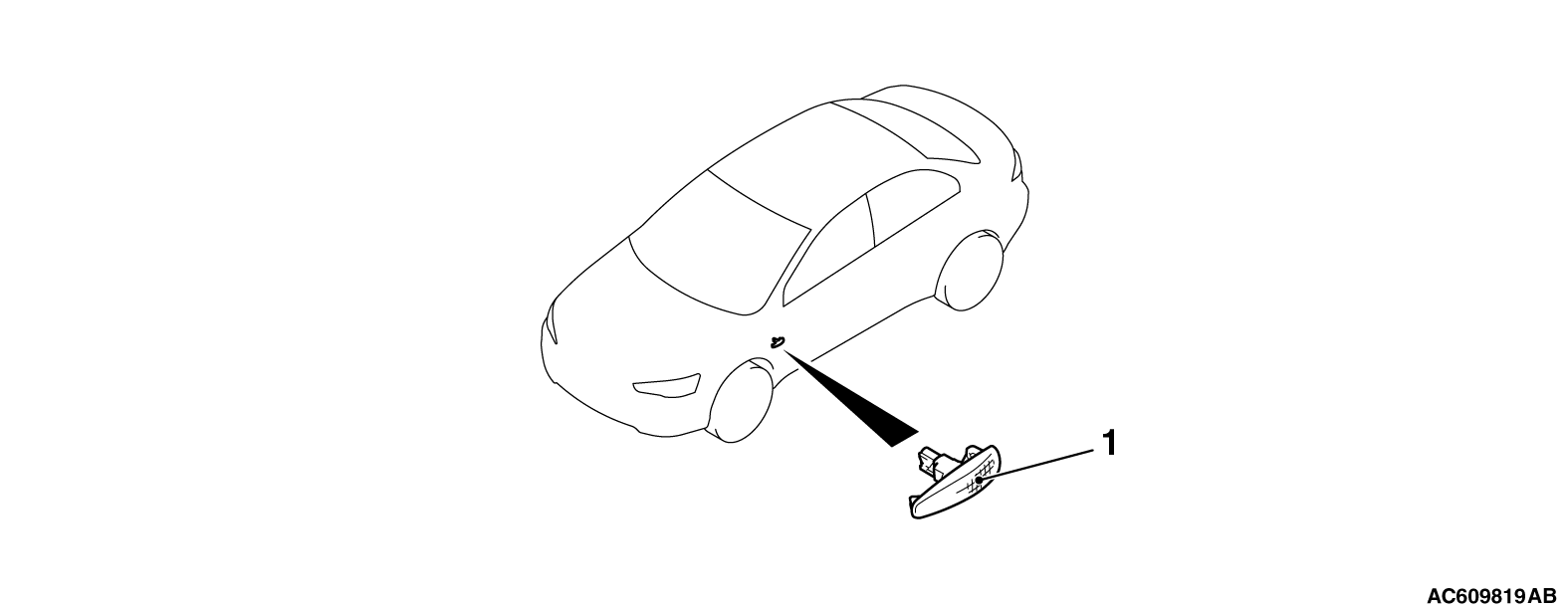

<<A>>	>>A<<	1.	Side turn-signal light assembly

REMOVAL SERVICE POINT

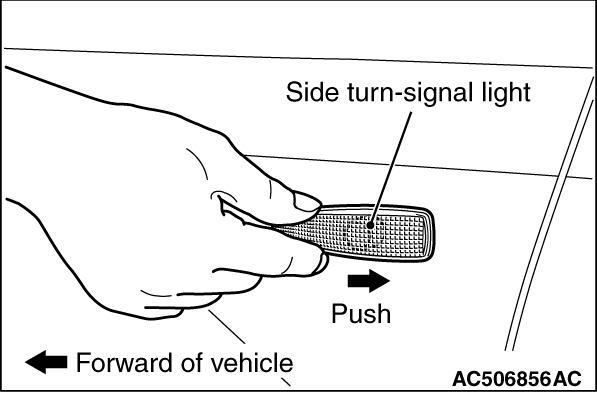

<<A>> SIDE TURN-SIGNAL LIGHT REMOVAL

Push the side turn-signal light toward the vehicle rear to bend the hook, and then remove by disengaging the tab from the fender panel.

INSTALLATION SERVICE POINT

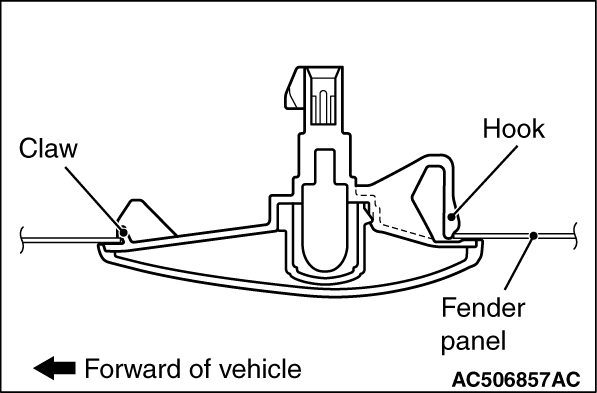

>>A<< SIDE TURN-SIGNAL LIGHT INSTALLATION

Engage the claw to the fender panel to install the side turn signal light.
