FUEL LEVEL SENSOR CHECK

1.Remove the rear seat (Refer to GROUP 52A - Rear Seat Assembly ).

2.Remove the floor inspection lid, and then remove the fuel pump module (Refer to GROUP 13D - Fuel Tank <2.0 L engine, 2.4 L engine> or <RALLIART>).

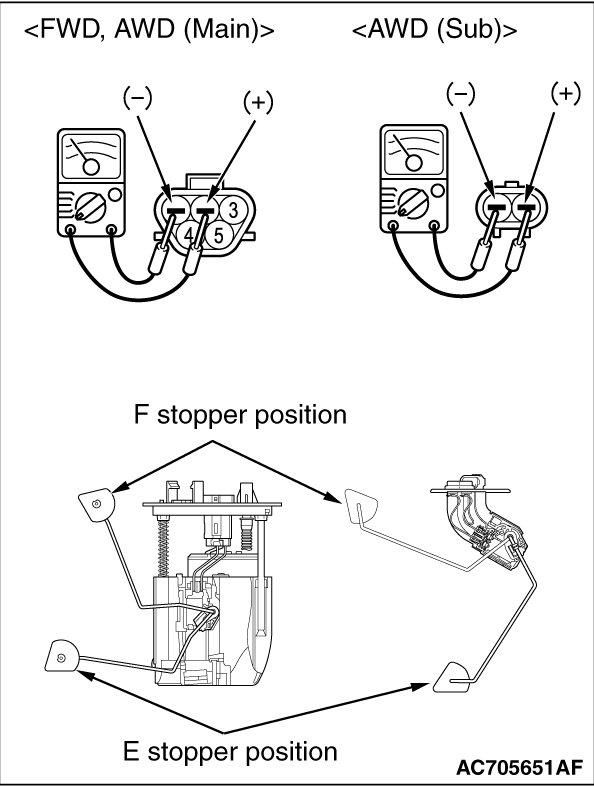

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and earth terminal is within the standard value. <FWD> Standard value: Float position Gauge resistance value (ohms) Stopper position "F" 13.0 ± 1.0 Stopper position "E" 120.0 ± 1.0 <AWD> Standard value: Float position Gauge resistance value (ohms) Main Sub Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0 Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0 When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

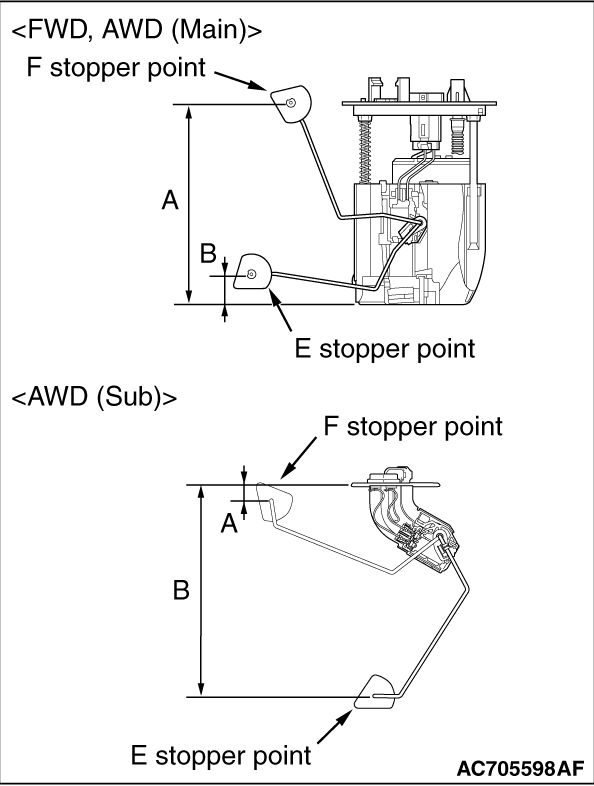

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value. <FWD> Standard value: Float position Float height {mm (in)} Stopper position "F" (height A) 181.5 (7.1) Stopper position "E" (height B) 26.7 (1.0) <AWD> Standard value: Float position Float height {mm (in)} Main Sub Stopper position "F" (height A) 140.9 (5.5) 14.2 ± 3.0 (0.6 ± 0.1) Stopper position "E" (height B) 39.1 (1.5) 179.3 ± 3.0 (7.1 ± 0.1)
