AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

3.Remove the cover (Refer to <Except RALLIART>, <RALLIART>).

4.Slide the outer housing of the driver’s air bag module connector in the arrow direction shown, and disconnect the connector. note When the driver’s air bag module connector is disconnected from the inflator, the four pins of inflator connector are automatically shorted. This prevents the unintentional deployment of driver’s air bags caused by the static or others.

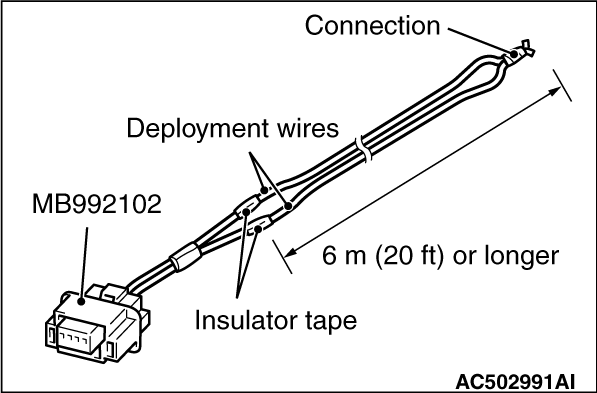

5.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB992102, and cover the connections with insulator tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the air bags from being unintentionally deployed because of the static and others.

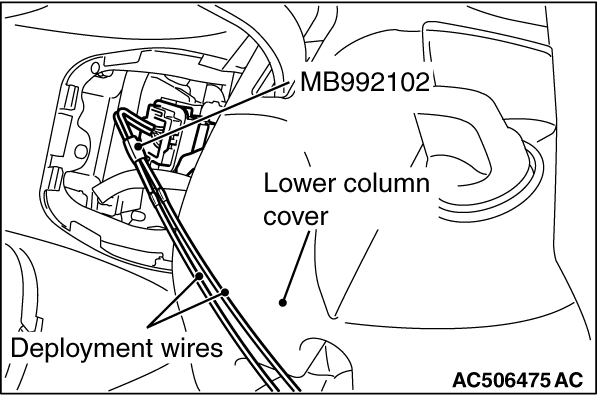

6.Connect the special tool MB992102 to the driver’s air bag module, and then pull out the deployment wire to outside the vehicle.

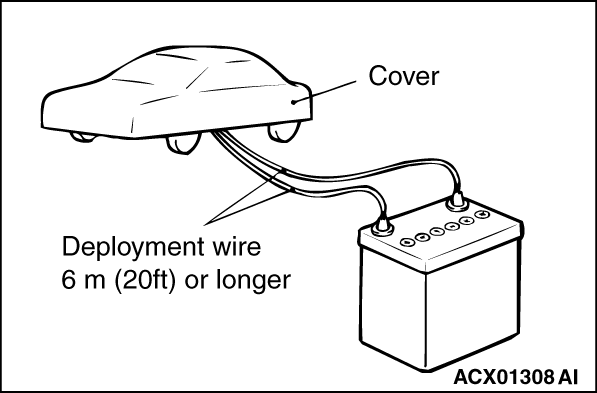

warning If the windshield glass is scratched, air bag deployment could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle. 7.To suppress the sound as much as possible, completely close all door windows, close the doors and put a cover on the vehicle. warning Before deploying the air bag in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the air bag module fails to deploy, do not go near the module. 8.At a location as far away from the vehicle as possible, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.After deployment, dispose of the air bag module according to the Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

3.Remove the glove box cover (Refer to GROUP 52A, Glove Box ).

4.Slide the outer housing of passenger’s (front) air bag module connector in the arrow direction shown, and disconnect the connector. note When the passenger’s (front) air bag module connector is disconnected from the instrument panel wiring harness side connector, the four pins of inflator connector are automatically shorted. This prevents the unintentional deployment of passenger’s (front) air bags caused by the static or others.

5.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB9921020, and cover the connections with insulator tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the unintentional deployment of passenger’s (front) air bags caused by the static or others.

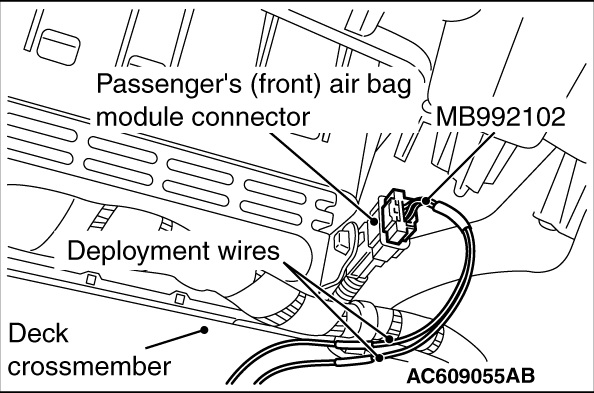

6.Connect the special tool MB992102 to the passenger’s (front) air bag module, and then pull out the deployment wire to outside the vehicle.

7. warning If the glass is scratched, air bag deployment could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle. To suppress the operation sound as much as possible, completely close all door windows, close the doors and put a cover on the vehicle. warning Before deploying the air bag in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the air bag module fails to deploy, do not go near the module. 8.At a location as far away from the vehicle as possible, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.After deployment, dispose of the air bag module according to the Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

3.Remove the instrument panel cover lower (Refer to GROUP 52A, Instrument lower panel ).

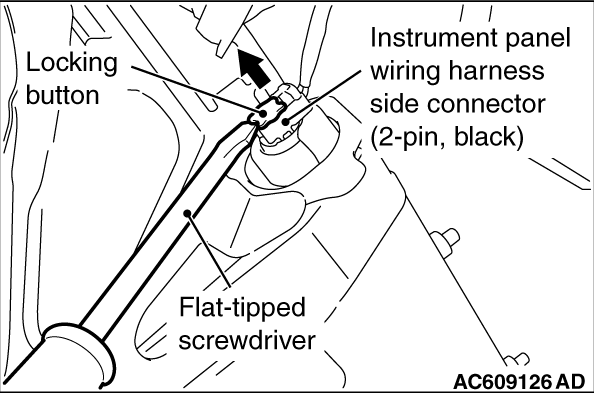

4.Use the flat-tipped screwdriver to pull out the locking button of knee air bag harness side connector. After releasing the lock, disconnect the connector. note If the knee air bag module connector is disconnected from the instrument panel wiring harness side connector, both electrodes of the knee air bag module connector will be automatically shorted to prevent unintended deployment of the knee air bag module due to static electricity, etc.

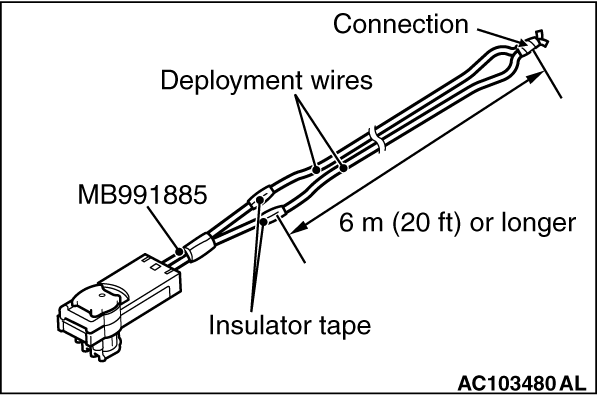

5.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the curtain air bag module.

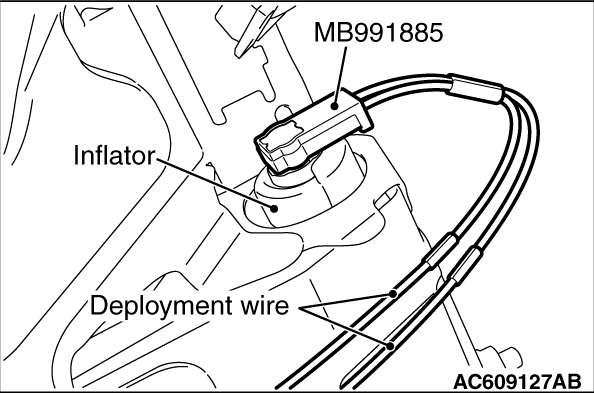

6.Connect the special tool MB991885 to the inflator, and then pull out the deployment wire to outside the vehicle.

7. warning If the glass is scratched, air bag deployment could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle. To suppress the deployment sound as much as possible, completely close all door windows, close the doors and put the cover on the vehicle. 8. warning Before deploying the air bag in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-operation handling instructions. If the air bag module fails to deploy, do not go near the air bag module. At a location as far away from the vehicle as possible, disconnect the two connected wires from each the, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.After deployment, dispose of the air bag module according to the Deployed Air Bag Module and Operated Seat belt Pre-tensioner Disposal (Refer to ).

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

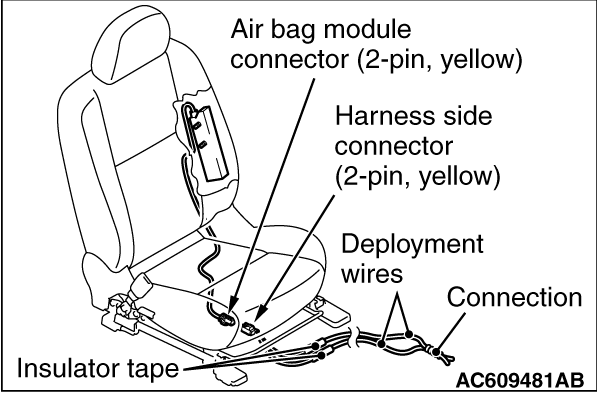

4.Disconnect the connections of the side-airbag module connector (two-pin: yellow) and the floor harness side connector (two-pin: yellow). caution Make sure to deploy both driver’s and front passenger’s side air bags. note When the side-airbag module connector is disconnected from the floor wiring harness side connector, the two pins of side air bag module connector are automatically shorted. This prevents the unintentional deployment of side-airbags caused by the static or others.

5.Obtain two suitable wires, which are 6 meters (20 feet) or longer, as deployment wires. Then connect the wires at one end to short. note This prevents the side-airbags from unintentional deployment caused by static electricity, etc. 6. caution Never fail to do Step 5 in order to prevent accidental deployment caused by static. Touch the vehicle body with bare hands to release the charged static.

7.With the side-airbag module connector disconnected, cut the floor harness using a nipper or similar tools. 8.Connect the deployment wire to each of two cut wiring harnesses. After covering the connection areas with insulation tape, pull out the deployment wire to outside the vehicle. 9.Connect the floor harness, to which the deployment wire is connected, to the side-airbag module connector.

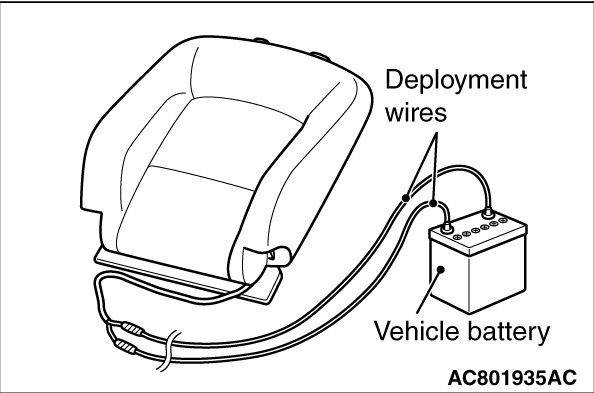

10. warning If the glass is scratched, air bag deployment could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle. To suppress the operation sound as much as possible completely close all door windows, close the doors and put the cover on the vehicle. 11. warning Before deploying the air bag in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the side-airbag module fails to deploy, do not go near the module. At a location as far away from the vehicle as possible, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the side-airbag. 12.After deployment, dispose of the front seatback assembly (side-airbag module) according to the Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

3.Remove the headlining (Refer to GROUP 52A, Headlining ).

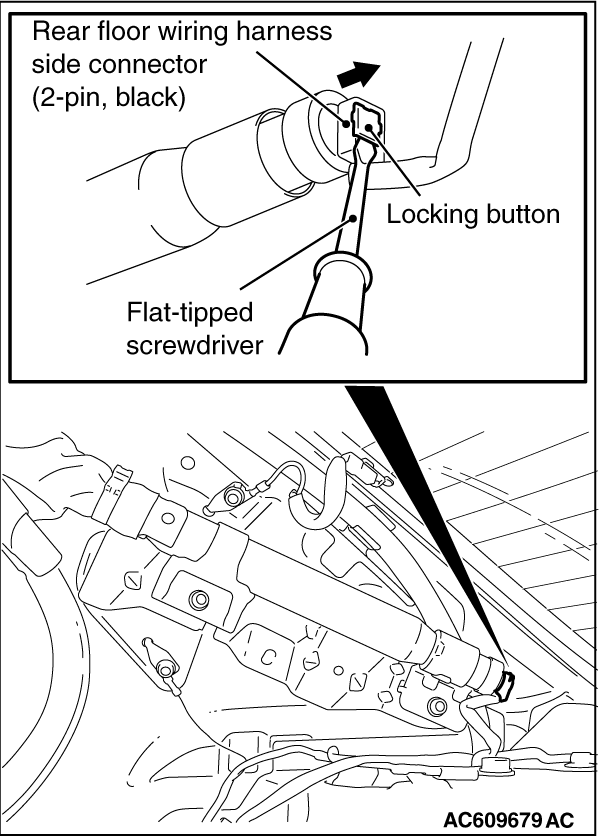

4.Use the flat-tipped screwdriver to pull out the locking button of rear floor harness side connector. After releasing the lock, disconnect the connector. note If the curtain air bag module connector is disconnected from the rear floor wiring harness side connector, both electrodes of the curtain air bag module connector will be automatically shorted to prevent unintended deployment of the curtain air bag module due to static electricity, etc.

5.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the curtain air bag module.

6.Connect the special tool MB991885 to the inflator, and then pull out the deployment wire to outside the vehicle.

7. warning If the glass is scratched, air bag deployment could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle. To suppress the deployment sound as much as possible, completely close all door windows, close the doors and put the cover on the vehicle. 8. warning Before deploying the air bag in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-operation handling instructions. If the air bag module fails to deploy, do not go near the air bag module. At a location as far away from the vehicle as possible, disconnect the two connected wires from each the, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.After deployment, dispose of the air bag module according to the Deployed Air Bag Module and Operated Seat belt Pre-tensioner Disposal (Refer to ).

2. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

3.Remove the lower center pillar trim (Refer to GROUP 52A, Trims ).

4.Use the slotted (-) screwdriver to pull out the locking button of floor harness side connector. After releasing the lock, disconnect the connector. note If the seat belt pre-tensioner connector is disconnected from the floor wiring harness side connector, both electrodes of the seat belt pre-tensioner connector will be automatically shorted to prevent unintended operation of the seat belt pre-tensioner due to static electricity, etc.

5.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected operation of the seat belt pre-tensioner.

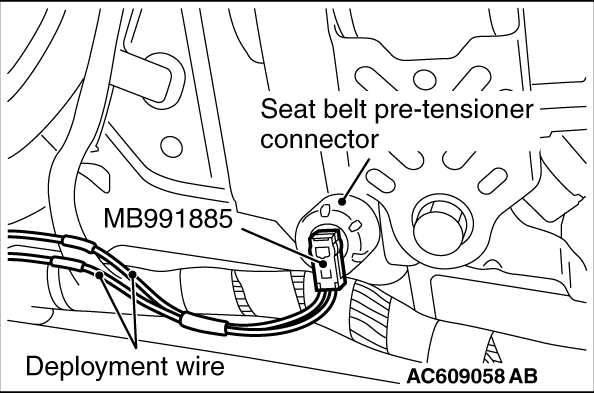

6.Connect the special tool MB991885 to the two-pin connector of seat belt pre-tensioner, and then pull out the deployment wire to outside the vehicle. 7.In order to suppress the operation sound as much as possible, fully close all the door windows and close the doors. 8. warning Before operating the seat belt pre-tensioner in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses. The inflator will be quite hot immediately following the operation, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from the seat belt pre-tensioner operation. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-operation handling instructions. If the seat belt pre-tensioner fails to operate, do not go near the seat belt pre-tensioner. At a location as far away from the vehicle as possible, disconnect the two connected wires from each the, and connect them to the two terminals of the battery (which has been removed from the vehicle) to operate the seat belt pre-tensioner. 9.After operation, dispose of the seat belt pre-tensioner according to the Deployed Air Bag Module operated Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Deploy the air bag in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform deployment outside if a strong wind is blowing. If there is a slight breeze, place the air bag module downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2.Remove the air bag module from the vehicle (Refer to <Except RALLIART>, <RALLIART>)

3.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB992102, and cover the connections with insulator tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the air bags from being unintentionally deployed because of the static and others. 4.Connect the special tool MB992102 to the driver’s air bag module. 5.To the torx screw installation hole located at the backside of air bag module, tie a thick wire for fixing the wheel.

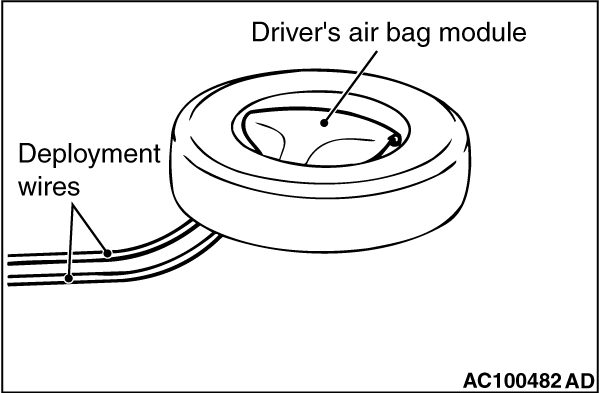

6.Route the deployment wires connected to the driver’s air bag module beneath an old tire and wheel assembly. Then, using the wire tied to the bolt, secure the driver’s air bag module to the tire and wheel assembly with the deployment surface facing up.

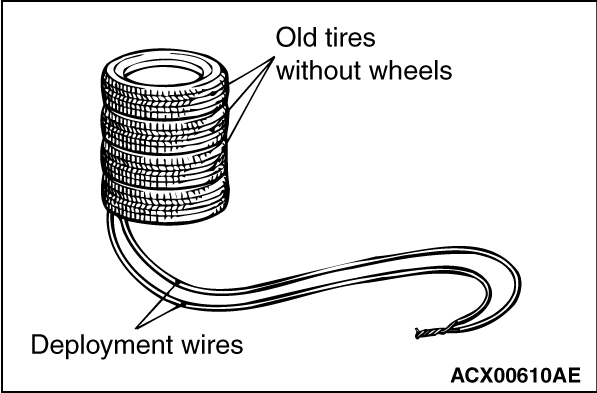

7.Place three old tires without wheels on the tire secured with the driver’s air bag module.

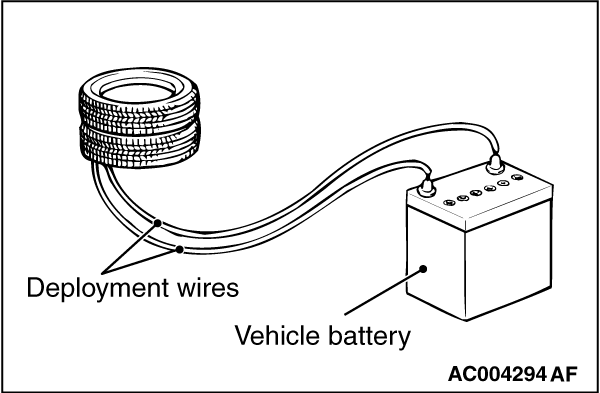

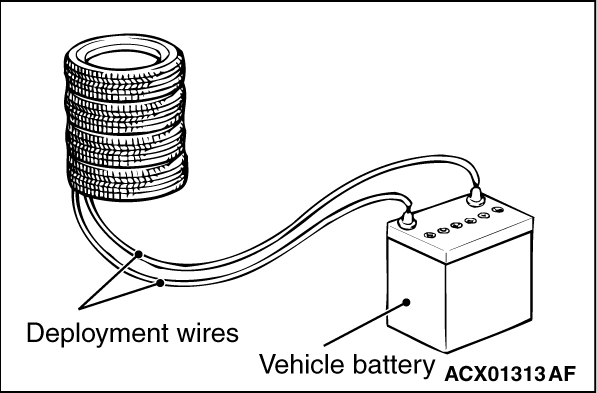

8. warning Before deployment, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the air bag fails to deploy, do not go near the module. At a location as far away from the air bag module as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them, to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.Discard the deployed air bag module as specified in Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Deploy the air bag in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform deployment outside if a strong wind is blowing. If there is a slight breeze, place the air bag module downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2. caution Once disconnected, both electrodes of the passenger’s (front) air bag module connector short automatically to prevent accidental deployment caused by static etc. Still, in consideration of possible accidental deployment, store the air bag module on flat place with deployment surface facing up. Do not put anything on it. Remove the air bag module from the vehicle (Refer to ).

3.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB992102, and cover the connections with insulator tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the air bags from being unintentionally deployed because of the static and others. 4.Connect the special tool MB992102 to the passenger’s (front) air bag module.

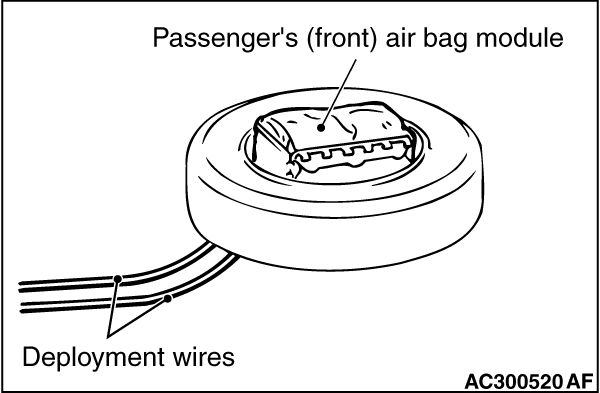

5.Pass the thick wire through the hole of air bag module mounting bracket. When, with the air bag module deployment surface facing upward, fit the module to the old tire with wheel.

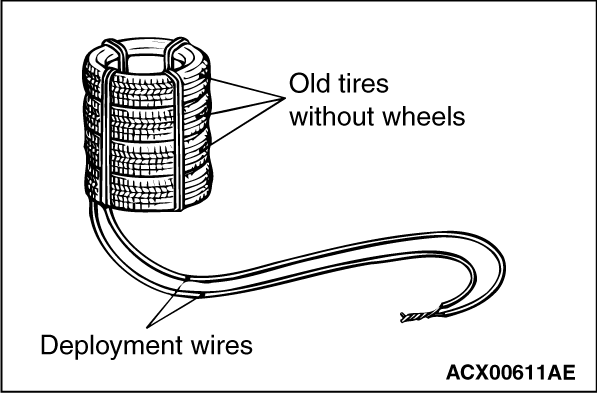

6.Place three old tires without wheels on top of the tire secured to the air bag module, and secure all tires together with ropes (four locations).

7. warning Before deployment, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the air bag fails to deploy, do not go near the module. At a location as far away from the air bag module as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 8.Discard the deployed air bag module as specified in Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Deploy the air bag in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform deployment outside if a strong wind is blowing. If there is a slight breeze, place the air bag module downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2. caution Once disconnected, both electrodes of the knee air bag module connector short automatically to prevent accidental deployment caused by static etc. Still, in consideration of possible accidental deployment, store the air bag module on flat place with deployment surface facing up. Do not put anything on it. Remove the air bag module from the vehicle (Refer to ).

3.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulator tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the air bags from being unintentionally deployed because of the static and others. 4.Connect the special tool MB991885 to the knee air bag module.

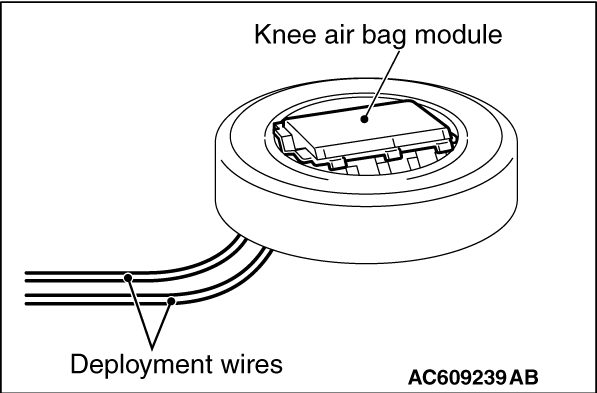

5.Pass the thick wire through the hole of air bag module mounting bracket. When, with the air bag module deployment surface facing upward, fit the module to the old tire with wheel.

6.Place three old tires without wheels on the tire secured with the knee air bag module.

7. warning Before deployment, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the air bag fails to deploy, do not go near the module. At a location as far away from the air bag module as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 8.Discard the deployed air bag module as specified in Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Deploy the side-air bag in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform deployment outside if a strong wind is blowing. If there is a slight breeze, place the side-air bag module downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2. caution Once disconnected, both electrodes of the side-air bag module connector short automatically to prevent accidental deployment caused by static etc. Still, in consideration of the accidental deployment, store the side-air bag module on flat place with deployment surface facing up. Also, do not put anything on it. Remove the front seatback assembly (Refer to) <Except RALLIART>, the front seatback (Refer to ) <RALLIART>.

3.Obtain two suitable wires, which are 6 meters (20 feet) or longer, as deployment wires. Then connect the wires at one end to short. note This prevents the side-air bags from unintentional deployment caused by static electricity, etc. 4. caution Never fail to do Step 4 in order to prevent accidental deployment caused by static. Touch the vehicle’s body with bare hands to discharge static electricity. 5.Install the front seatback so that the backside of the front seatback meets the ground.

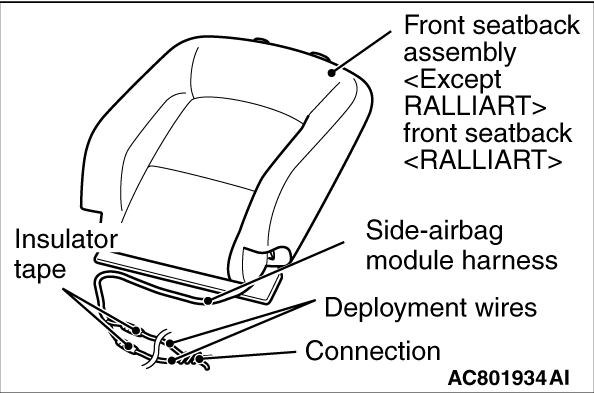

6.Cut off the side-air bag module wiring harness connector from the wiring harness with nippers. Connect the deployment wire to each of the two cut wiring harnesses, and cover the connection areas with insulation tape.

7. warning Before deployment, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-deployment handling instructions. If the side-air bag fails to deploy, do not go near the module. At a location as far away from the front seatback as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 8.Discard the deployed side-air bag module as specified in Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Deploy the air bag in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform deployment outside if a strong wind is blowing. If there is a slight breeze, place the air bag module downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2. warning Store the curtain air bag module on a flat surface with its operation surface facing up. Do not place anything on top of them. Remove the curtain air bag module from the vehicle (Refer to ).

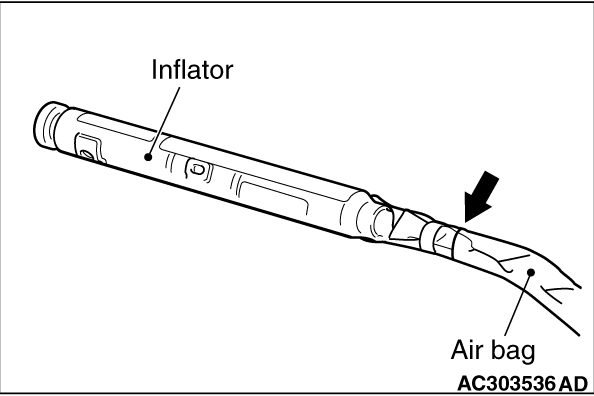

3.Cut the inflator from the air bag as shown in the figure using a cutter or a similar tool.

4.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected deployment of the air bag module. note This prevents the air bags from being unintentionally deployed because of the static and others. 5.Connect the special tool MB991885 to the curtain air bag module.

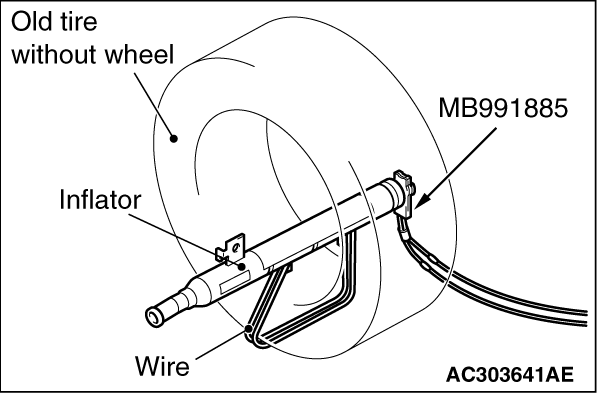

6.Feed a thick wire through the bracket of the inflator, and connect it to an old tire without a wheel.

7.Place the tire to which the inflator is fixed onto the two stacked tires. Then, place 1 or more old tires without wheel onto the stacked tires, and tie and fix all the tires with rope. (4 positions)

8. warning Before operation, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the deployment, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from air bag deployment. See Deployed Air Bag Module and Operated Seat Belt Pre-tensioner Disposal (Refer to ) for post-operation handling instructions. If the air bag fails to deploy, do not go near the module. At a location as far away from the air bag module as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to deploy the air bag. 9.Discard the deployed air bag module as specified in Deployed Air Bag Module and Seat Belt Pre-tensioner Disposal (Refer to ).

1. danger Wait at least 60 seconds after disconnecting the battery cables before doing any further work (Refer to ). warning Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Operate the seat belt pre-tensioner in a wide, flat area at least 6 meters (20 feet) away from obstacles and other people. Do not perform operation outside if a strong wind is blowing. If there is a slight breeze, place the seat belt pre-tensioner downwind from the battery. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.

2. warning Store the seat belt pre-tensioner on a flat surface with its operation surface facing up. Do not place anything on top of them. Remove the seat belt pre-tensioner from the vehicle (Refer to ).

3.Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB991885, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short-circuited), to prevent sudden unexpected operation of the seat belt pre-tensioner. note This prevents the unintentional activation of inflator caused by the static or others. 4.Connect the special tool MB991885, which the deployment wires is attached to, to the seat belt pre-tensioner connector. 5. caution The adapter harness below the wheel should be loose. If it is too tight, the reaction when the seat belt pre-tensioner operates could damage the adapter harness. Pass the thick wires through the hole on the seat belt pre-tensioner bracket and secure them to the front (raised part) of the wheel in two places.

6.Pull the seat belt out to the outside of the tire, and then place one tire without a wheel on top.

7. warning Before operation, check carefully to be sure that no one is nearby. The inflator will be quite hot immediately following the operation, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although not poisonous, do not inhale gas from seat belt pre-tensioner operation. See Deployed Air Bag Module and Operated Seat Belt pre-tensioner Disposal (Refer to ) for post-operation handling instructions. If the seat belt pre-tensioner fails to operate, do not go near the seat belt pre-tensioner. At a location as far away from the seat belt pre-tensioner as possible, and from a shielded position, disconnect the two connected wires from each other, and connect them to the two terminals of the battery (which has been removed from the vehicle) to operate the seat belt pre-tensioner. 8.Discard the operated seat belt pre-tensioner as specified in Deployed Air Bag Module and Seat Belt pre-tensioner Disposal (Refer to ).

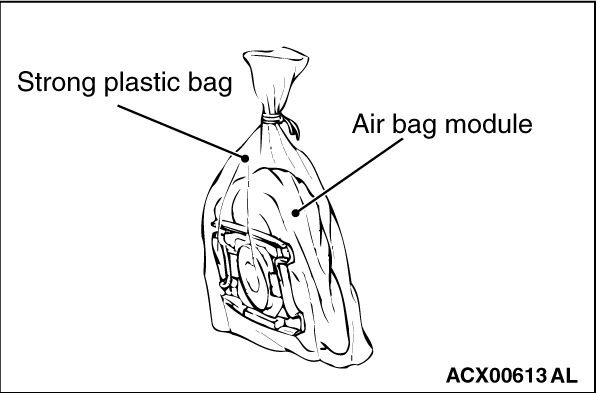

4.Tightly seal the air bag module and seat belt pre-tensioner in a strong plastic bag for disposal. 5.Be sure to always wash your hands after completing this operation.
