SPECIAL TOOLS


Tool
 Tool number and name
 Supersession
 Application

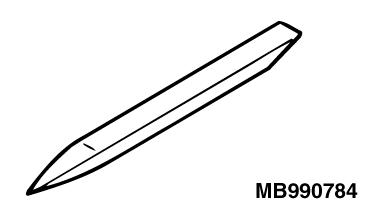

MB990784
Ornament remover
 General service tool
 Removal of cover.

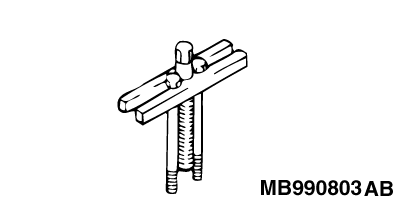

MB990803
Steering wheel puller
 General service tool
 Steering wheel removal

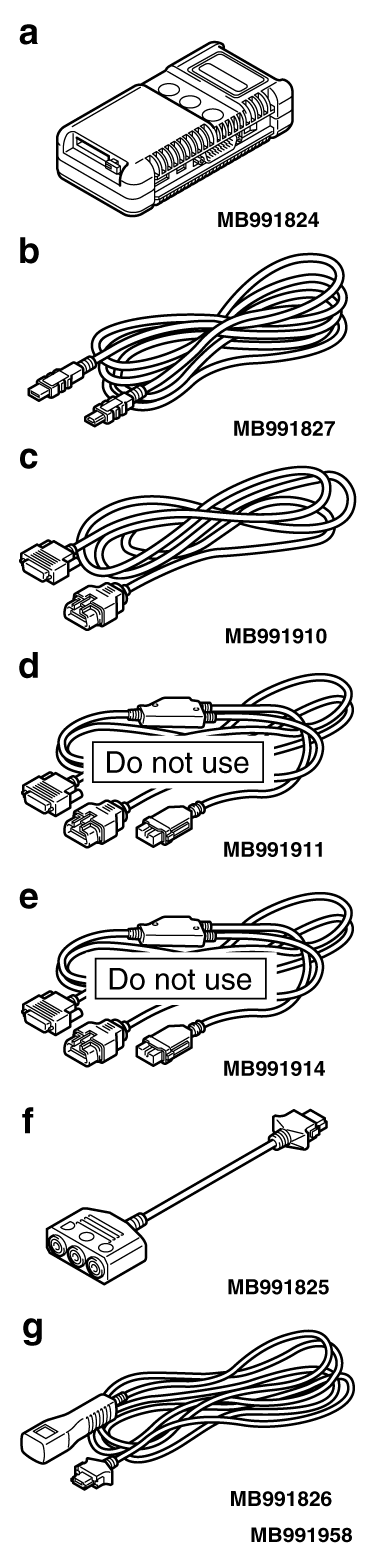

MB991958

    a: MB991824
    b: MB991827
    c: MB991910
    d: MB991911
    e: MB991914
    f: MB991825
    g: MB991826
Scan tool (M.U.T.-III sub assembly)

    a: Vehicle communication interface (V. C. I.)
    b: M.U.T.-III USB cable
    c: M.U.T.-III main harness A (Vehicles with CAN communication system)
    d: M.U.T.-III main harness B (Vehicles without CAN communication system)
    e: M.U.T.-III main harness C (for Chrysler models only)
    f: M.U.T.-III measurement adapter
    g: M.U.T.-III trigger harness
 MB991824-KIT
note g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
caution For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking diagnostic trouble code


MB991865
Dummy resistor
SRS air bag and seat belt pre-tensioner circuit check


MB991866
Resistor harness
Driver’s and passenger’s (front) air bag and side-airbag circuit check

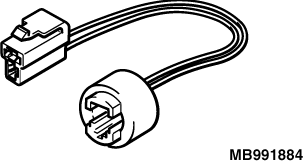

MB991884
Resistor harness
Knee air bag, curtain air bag and seat belt pre-tensioner circuit check

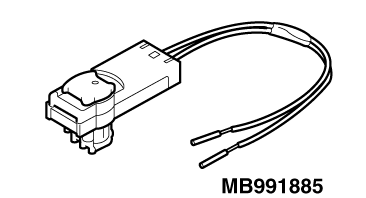

MB991885
Adapter harness
Deployment of Knee air bag, curtain air bag and seat belt pre-tensioner inside or outside the vehicle

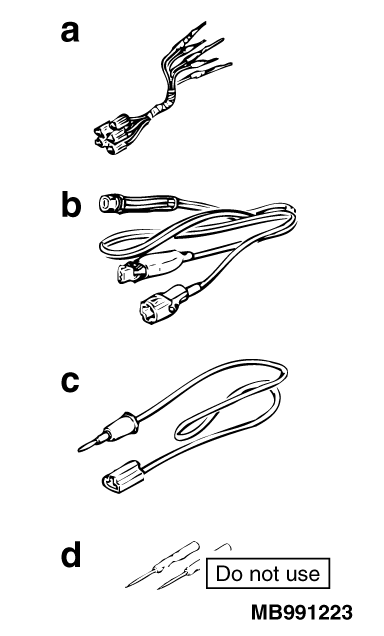

MB991223

    a: MB991219
    b: MB991220
    c: MB991221
    d: MB991222
Harness set

    a: Test harness
    b: LED harness
    c: LED harness adaptor
    d: Probe
 General service tools
 Checking the continuity and measuring the voltage at the SRS-ECU harness connector

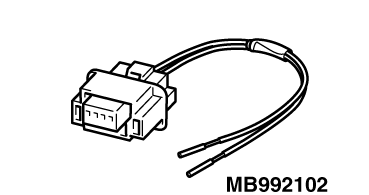

MB992102
Air bag inflation adapter harness
Deployment of driver’s and passenger’s (front) air bag module inside or outside the vehicle

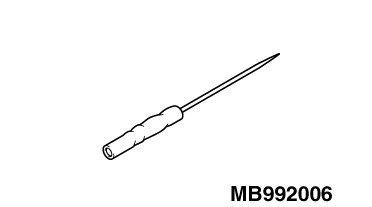

MB992006
Extra fine probe
 General service tool
 Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
