REMOVAL AND INSTALLATION

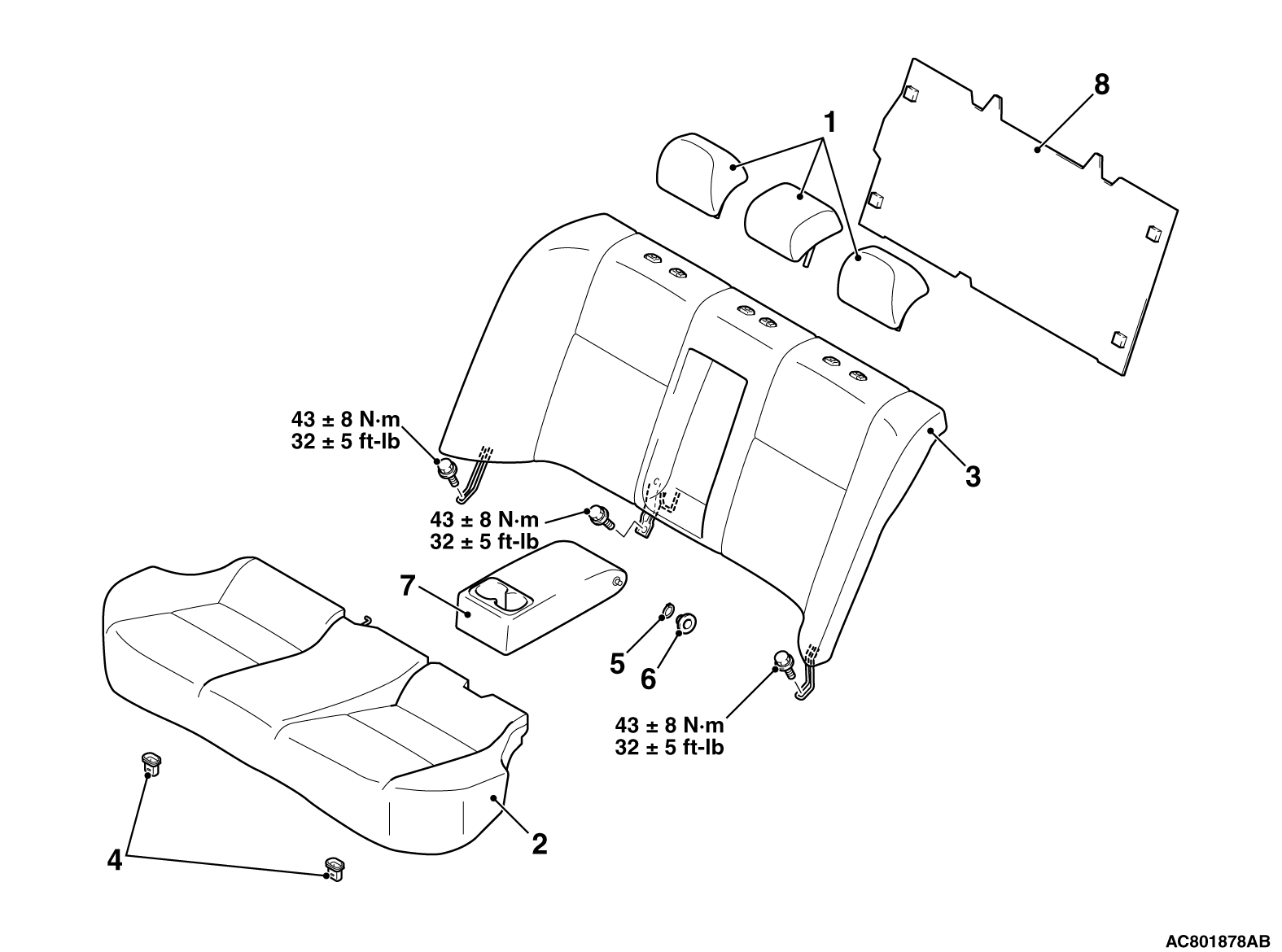

<BENCH SEAT> Removal steps 1. Rear seat headrestraint <Some models> >>C<< 2. Rear seat cushion assembly >>A<< 3. Rear seatback assembly 4. Rear seat hook 5. Snap ring <RALLIART> 6. Rear seat bushing <RALLIART> 7. Rear seat armrest <RALLIART> 8. Luggage room partition board

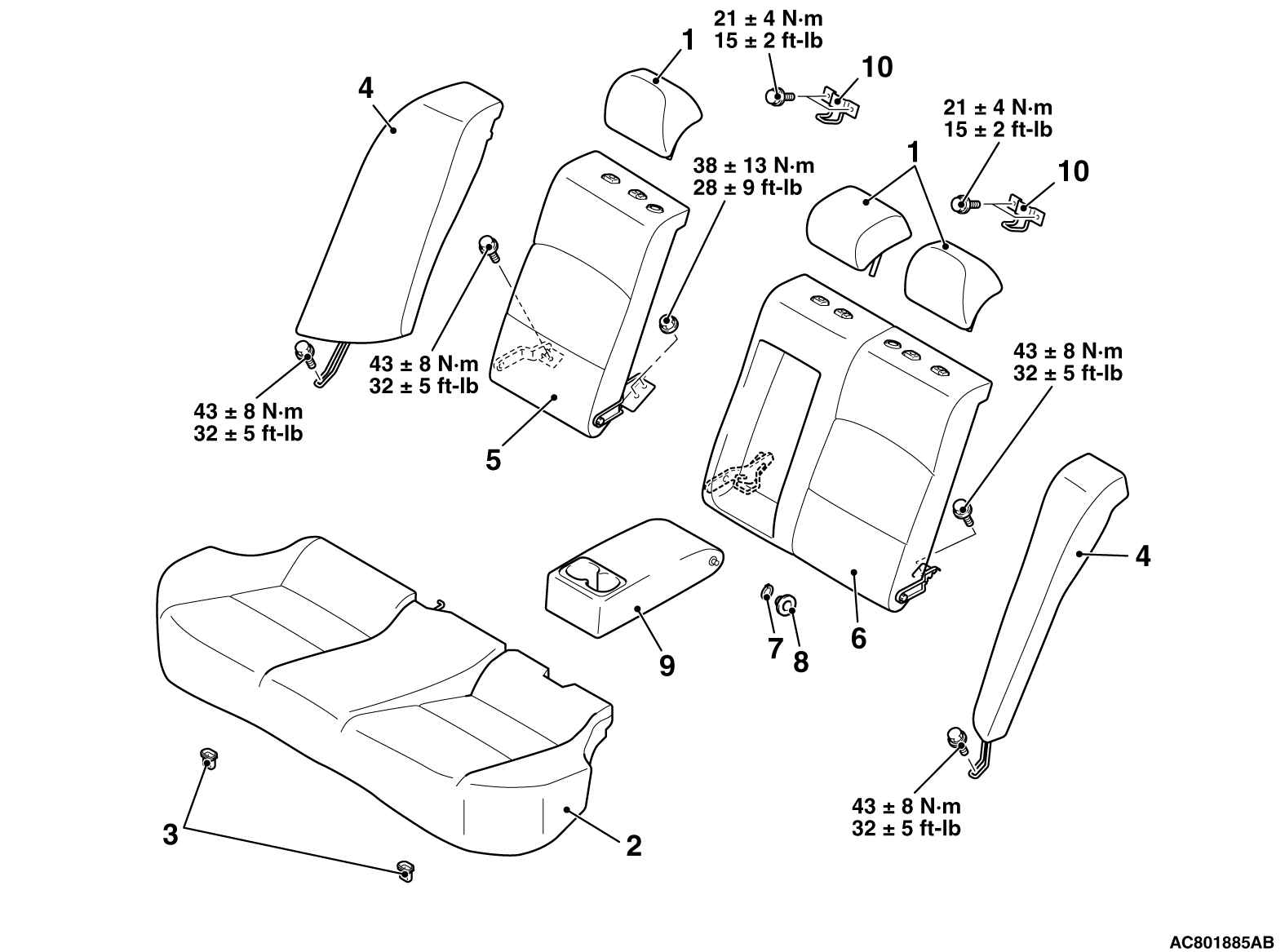

<SPRIT SEAT> Removal steps 1. Rear seat headrestraint >>C<< 2. Rear seat cushion assembly 3. Rear seat hook >>B<< 4. Rear seatback side assembly >>A<< 5. Rear seatback assembly (RH) >>A<< 6. Rear seatback assembly (LH) 7. Snap ring 8. Rear seat bushing 9. Rear seat armrest 10. Rear seat striker

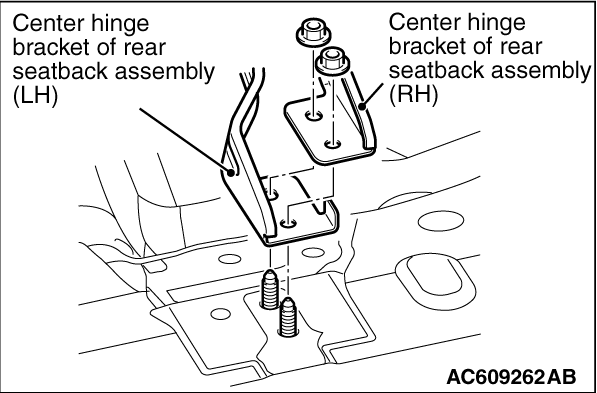

Place the center hinge bracket of the rear seatback assembly (LH) on top of the center hinge bracket of the rear seatback assembly (RH) for installation.

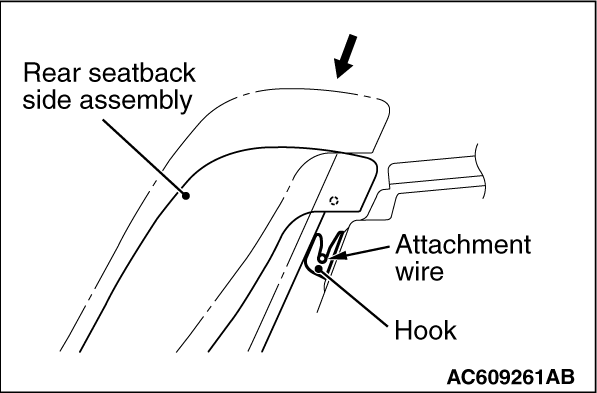

Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

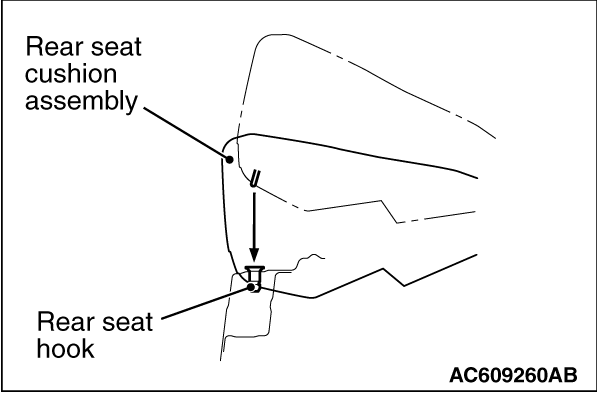

Fit the rear seat cushion into the rear seat hook securely.
