DISASSEMBLY AND ASSEMBLY

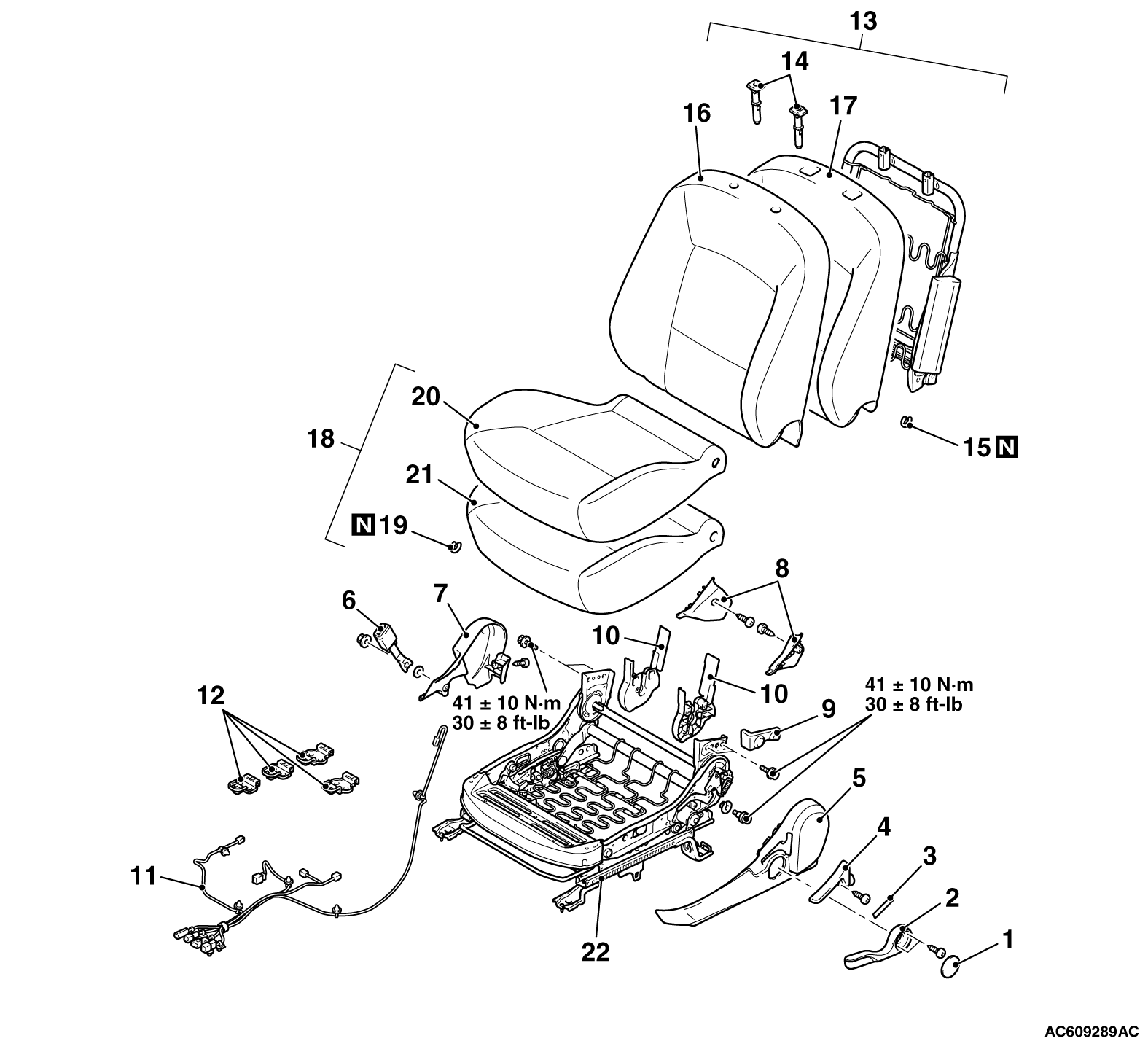

<STANDART SEAT, SPORT SEAT>



Disassembly steps
<<A>>
1.
 Height adjuster lever cap


2.
 Height adjuster lever


3.
 Reclining adjuster cap


4.
 Reclining adjuster lever


5.
 Side shield cover


6.
 Inner seat belt


7.
 Hinge cover


8.
 Side shield inner cover


9.
 Reclining adjuster upper cover


10.
 Reclining adjuster cover


11.
 Harness


12.
 Hook


13.
 Front seatback assembly
<<B>>
14.
 Head restraint guide


15.
 Hog ling


16.
 Front seatback cover


17.
 Front seatback pad


18.
 Front seat cushion assembly


19.
 Hog ling


20.
 Front seat cushion cover


21.
 Front seat cushion pad


22.
 Front seat cushion frame
Required Special Tool:

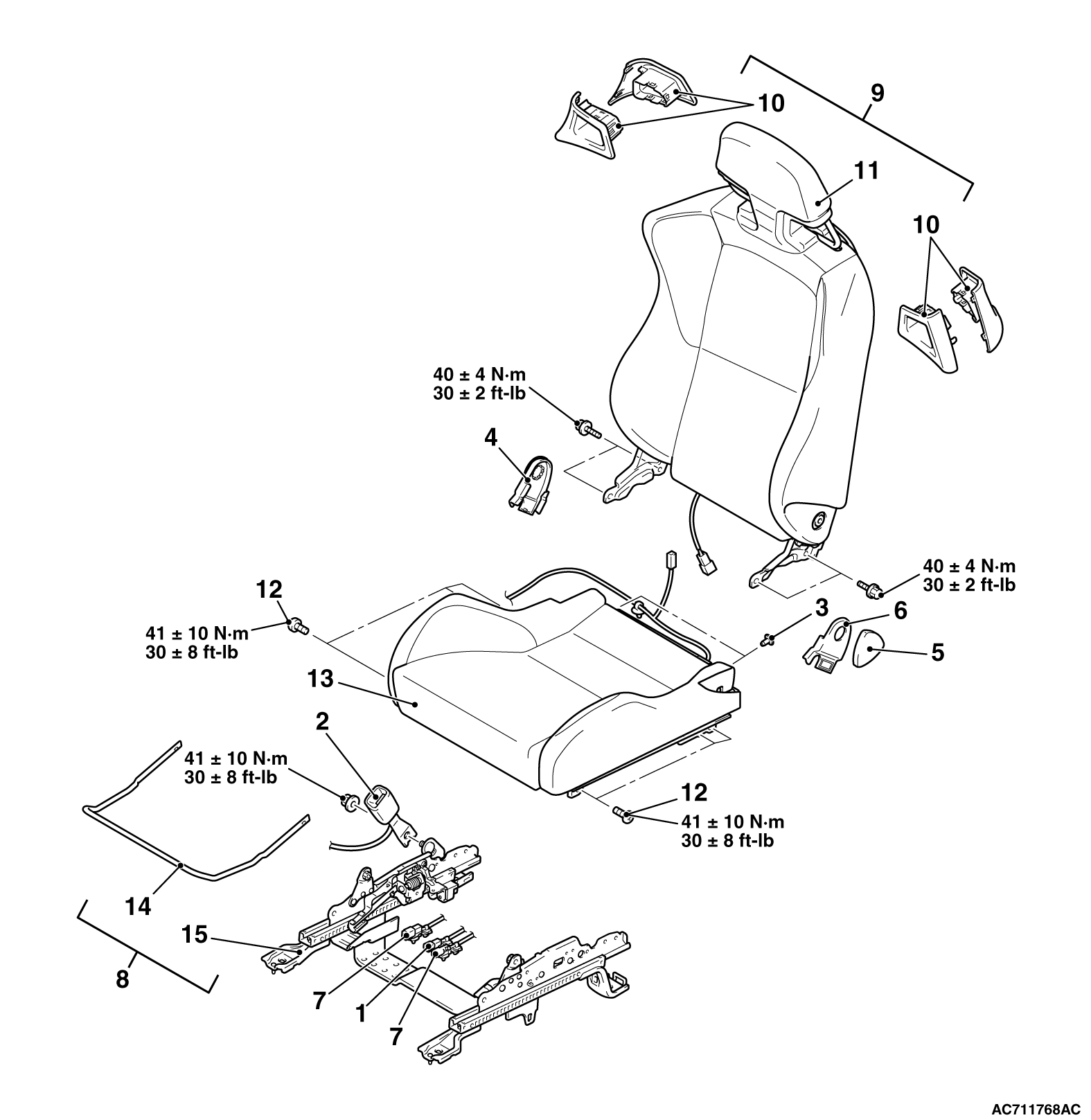

<RECARO SEAT>



Disassembly steps


1.
 Seat belt harness connector


2.
 Seat belt inner


3.
 Seat cushion cover fixation clip


4.
 Hinge cover


5.
 Reclining adjuster knob


6.
 Side shield cover


7.
 Heated seat & Side air bag harness connector


8.
 Slide adjuster assembly


9.
 Front seatback assembly


10.
 Headrestraint garnish


11.
 Front seatback


12.
 Slide rail adjuster mounting bolts


13.
 Front seat cushion


14.
 Front seat slide adjuster lever


15.
 Slide adjuster
Required Special Tool:

DISASSEMBLY SERVICE POINTS

<<A>> HEIGHT ADJUSTER CAP REMOVAL

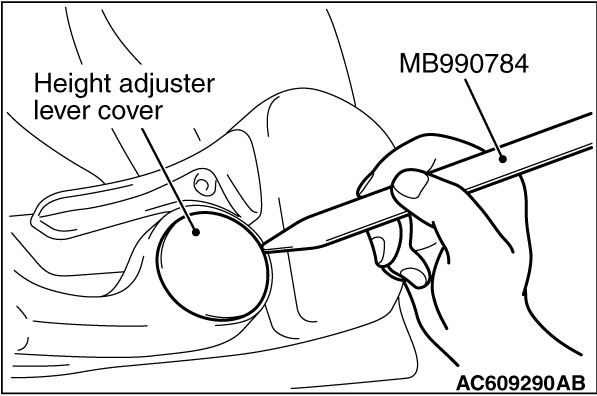

Use special tool MB990784 as shown to remove the height adjuster lever cover.

<<B>> HEAD RESTRAINT GUIDE REMOVAL

Peel of the front seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
