REMOVAL AND INSTALLATION

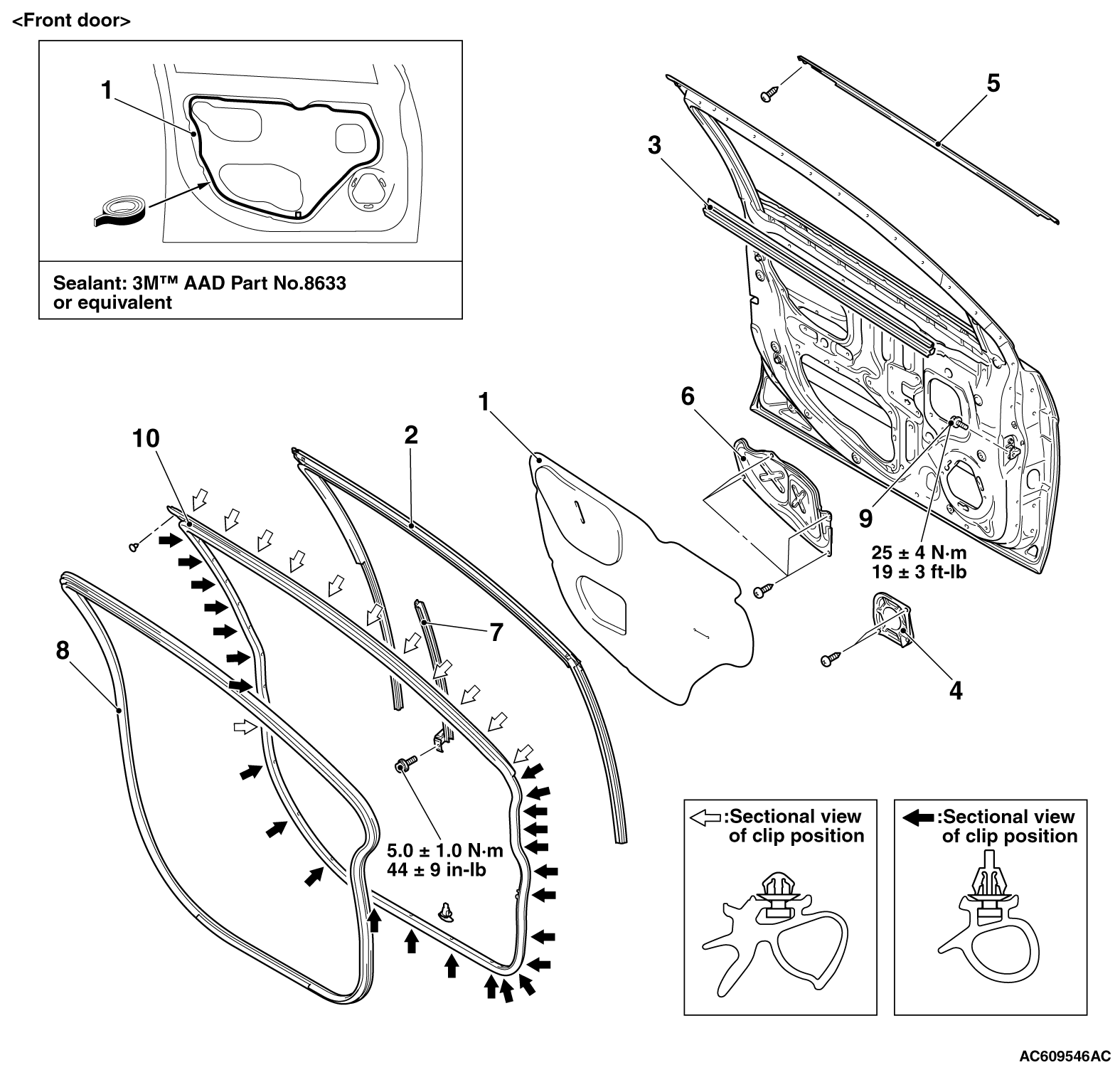

Waterproof film removal steps · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 1. Waterproof film Door window glass runchannel removal >>C<< 2. Door window glass runchannel Door beltline weatherstrip inner removal steps · Door trim assembly (Refer to GROUP 52A, Door Trim .) 3. Door beltline weatherstrip inner Door speaker cover removal steps <Vehicles with rockford fosgate premium sound system> · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 1. Waterproof film 4. Door speaker cover Door beltline molding removal steps <Standard> · Door mirror assembly (Refer to GROUP 51, Door Mirror .) 5. Door beltline molding Door beltline molding removal steps <Bright> · Door mirror assembly (Refer to GROUP 51, Door Mirror .) · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 1. Waterproof film 3. Door beltline weatherstrip inner 4. Door speaker cover <Vehicles with rockford fosgate premium sound system> <<A>> 5. Door beltline molding Speaker bracket removal steps <Vehicles with rockford fosgate premium sound system> · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 1. Waterproof film 6. Door speaker bracket Rear lower sash removal steps · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 1. Waterproof film 6. Door speaker bracket <Vehicles with rockford fosgate premium sound system> 7. Rear lower sash Door opening weatherstrip inner removal steps · Cowl side trim and front scuff plate (Refer to GROUP 52A, Trim .) 8. Door opening weatherstrip inner Door opening weatherstrip outer removal steps 9. Door check connecting bolt (Refer to .) <<C>> >>A<< 10. Door opening weatherstrip outer

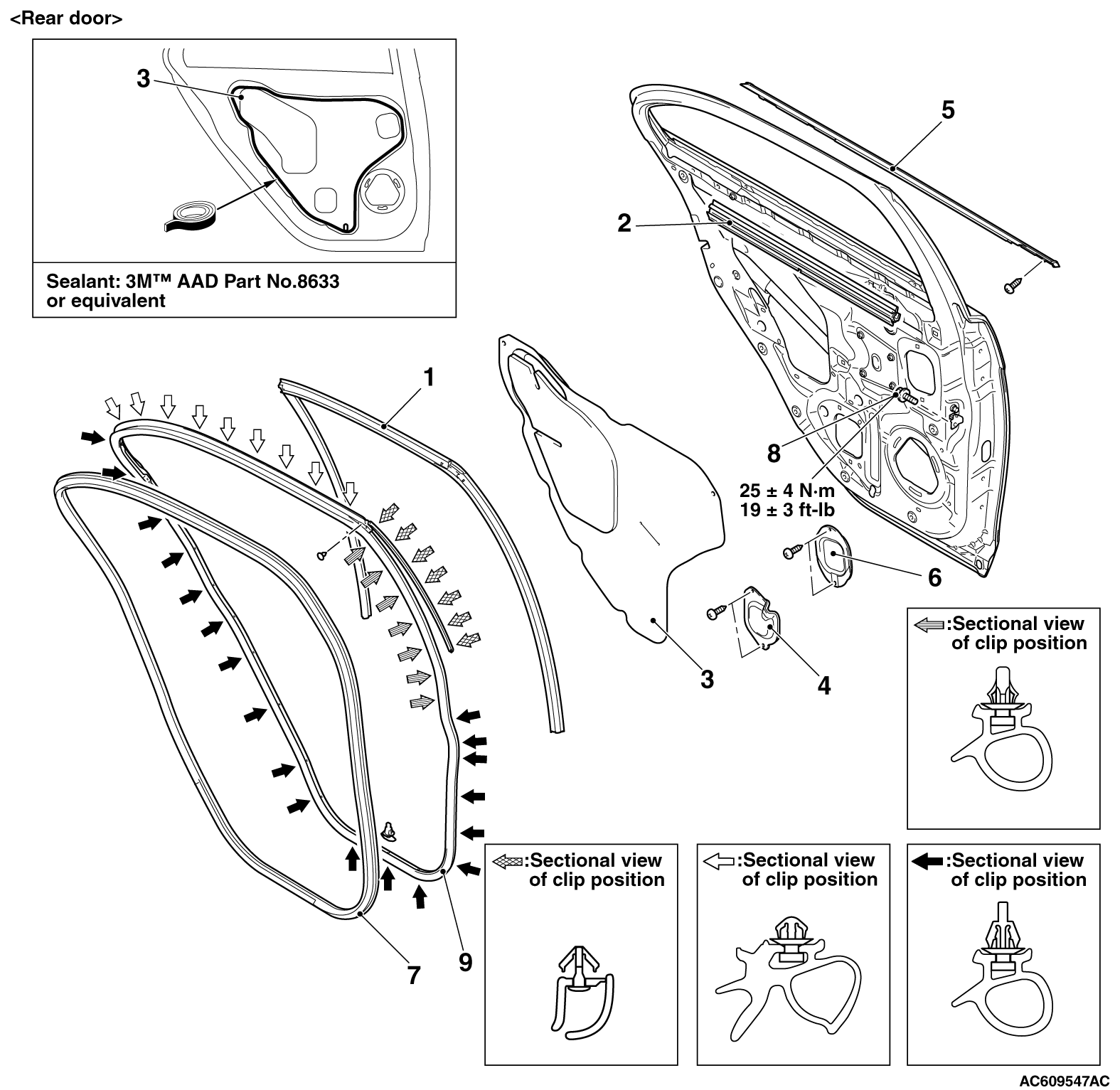

Door window glass runchannel removal >>C<< 1. Door window glass runchannel Door beltline weatherstrip inner removal steps · Door trim assembly (Refer to GROUP 52A, Door Trim .) 2. Door beltline weatherstrip inner Waterproof film removal steps · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 3. Waterproof film Door speaker cover removal steps <Vehicles with rockford fosgate premium sound system> · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 3. Waterproof film 4. Door speaker cover Door beltline molding removal <Standard> 5. Door beltline molding Door beltline molding removal steps <Bright> · Door trim assembly (Refer to GROUP 52A, Door Trim .) 2. Door beltline weatherstrip inner >>B<< 3. Waterproof film 4. Door speaker cover <Vehicles with rockford fosgate premium sound system> <<B>> 5. Door beltline molding Door speaker bracket removal steps <Vehicles with rockford fosgate premium sound system> · Door trim assembly (Refer to GROUP 52A, Door Trim .) >>B<< 3. Waterproof film 6. Door speaker bracket Door opening weatherstrip inner removal steps · Rear scuff plate (Refer to GROUP 52A, Trim .) 7. Door opening weatherstrip inner Door opening weatherstrip outer removal 8. Door check connecting bolt (Refer to .) <<C>> >>A<< 9. Door opening weatherstrip outer

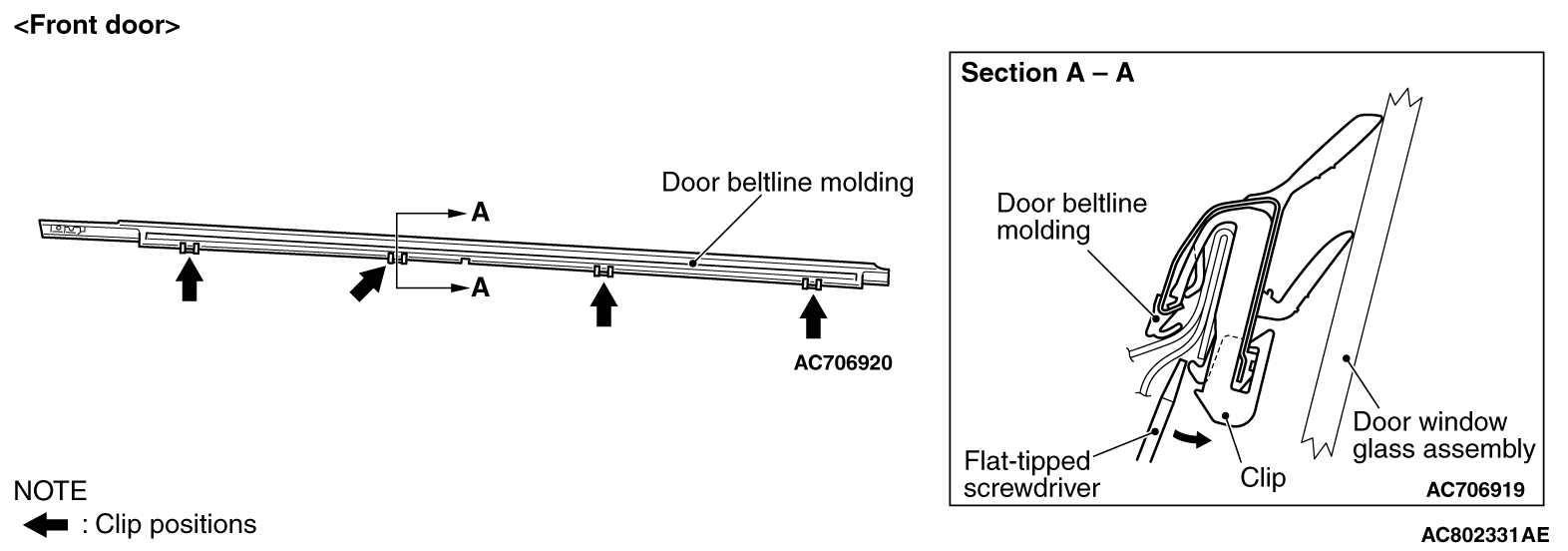

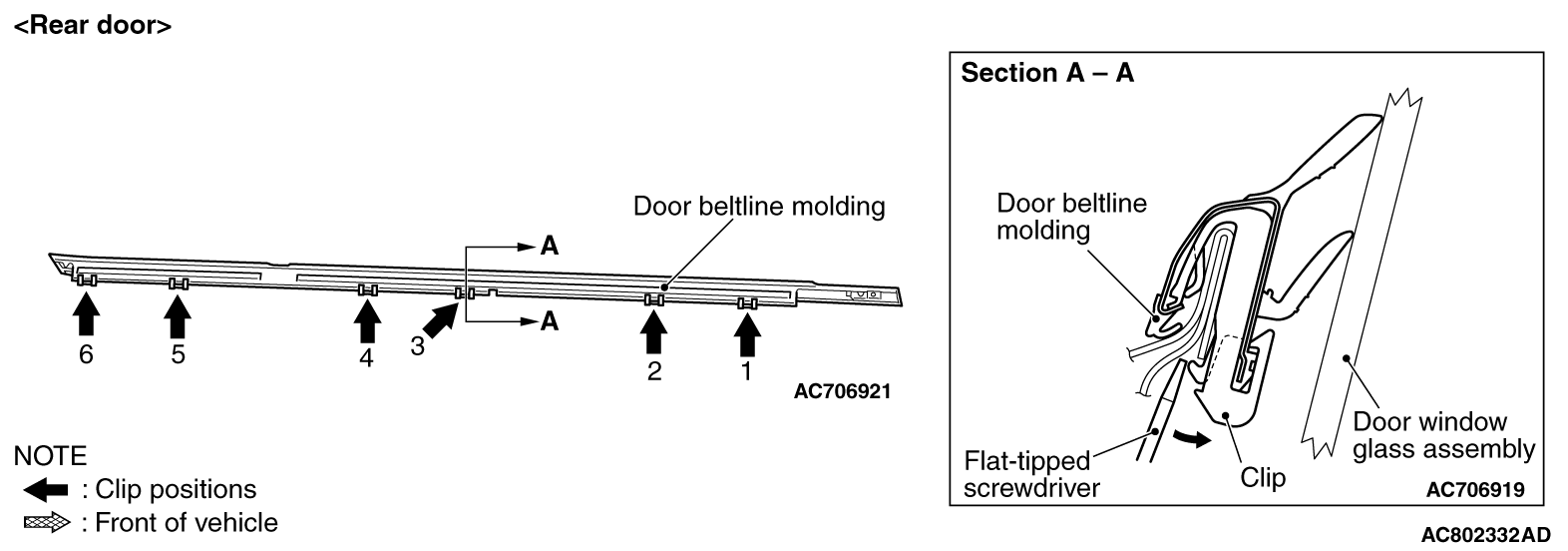

1. Prise the clip of the door beltline molding using a flat-tipped screwdriver in the order of the numbers (from 1 to 4) shown in the figure. Lift the vehicle front side of the door beltline molding. note The flat-tipped screwdriver cannot be used at clips 5 and 6 of the door beltline molding shown in the figure.

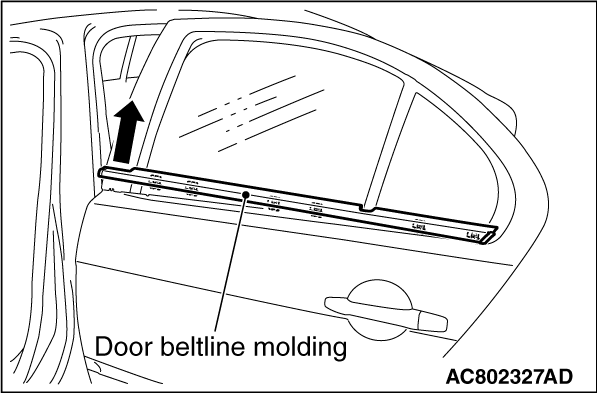

2.Lift the door beltline molding in the direction of the arrow in the figure, then remove the door beltline molding.

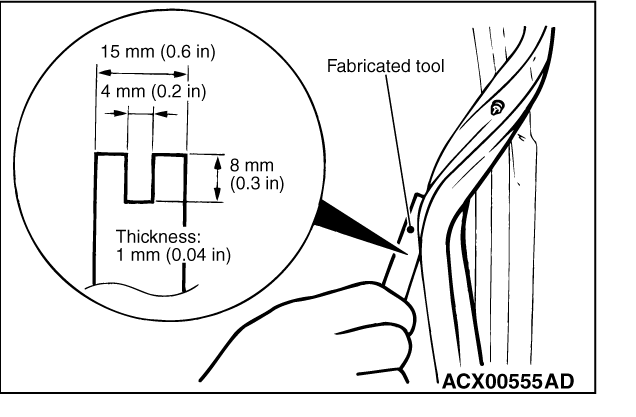

Make the tool as shown in the figure, and remove the weatherstrip from the door panel.

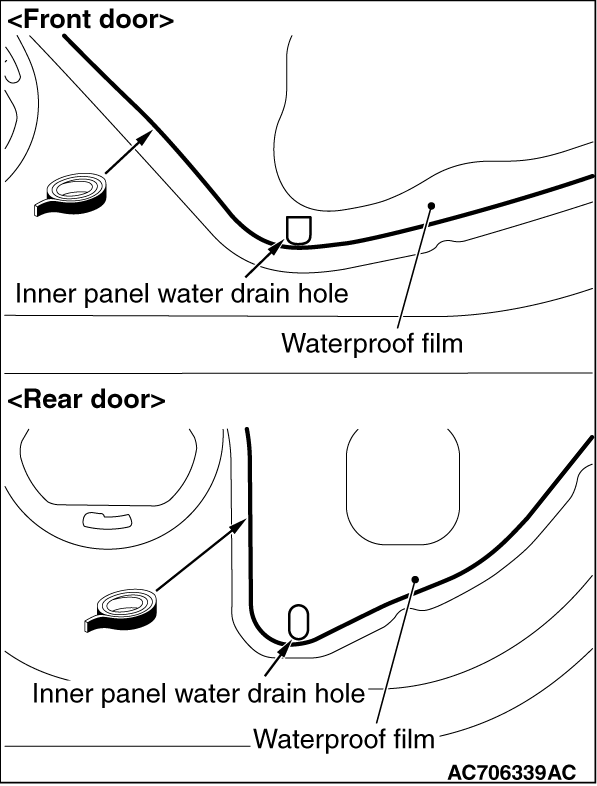

caution When a waterproof film is applied, guide the butyl rubber tape under the inner panel drain hole. Apply the specified adhesive to the waterproof film as shown in the figure and stick the film. Butyl rubber tape: 3M™ AAD Part number 8633 or equivalent
