TRUNK LID HEIGHT ADJUSTMENT

ADJUSTMENT AT BODY-SIDE

If the height between the trunk lid and the body is uneven, adjust the height in the following manner.
1.Loosen the body-side trunk lid hinge mounting bolts.
2.Adjust the height.
3.Tighten the hinge mounting bolts
Specified torque: 23 ± 6 N·m (17 ± 4 ft-lb)

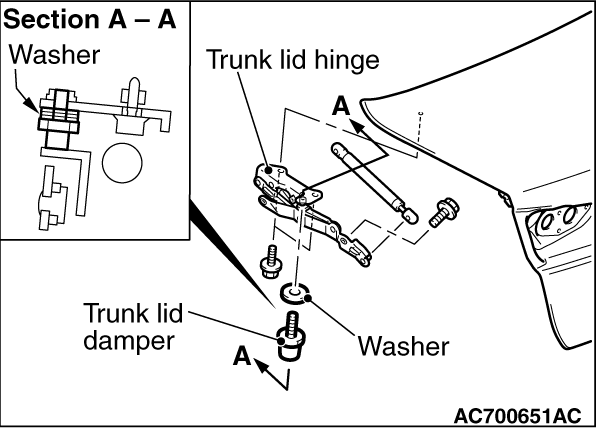

ADJUSTMENT AT TRUNK LID HINGE-SIDE <RALLIART>

If the height between the trunk lid and the body is uneven, adjust the height in the following manner.
1.Remove the trunk lid damper on the trunk lid hinge.

caution

Up to maximum 3 washers can be used.

2.Increase or decrease the number of washers until the even height between the trunk lid and the body can be obtained.
3.Tighten the trunk lid damper.
Specified torque: 5.0 ± 1.0 N·m (44 ± 8 in-lb)
