REMOVAL AND INSTALLATION

caution

The part indicated by the *¹ mark should be temporarily tightened, and then fully tightened with the engine and transaxle assembly weight applied on the vehicle body.
The parts indicated by the *² are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal and post-installation operation

Engine Room Under Cover Front A, B Removal and Installation (Refer to GROUP 51, Under Cover .)

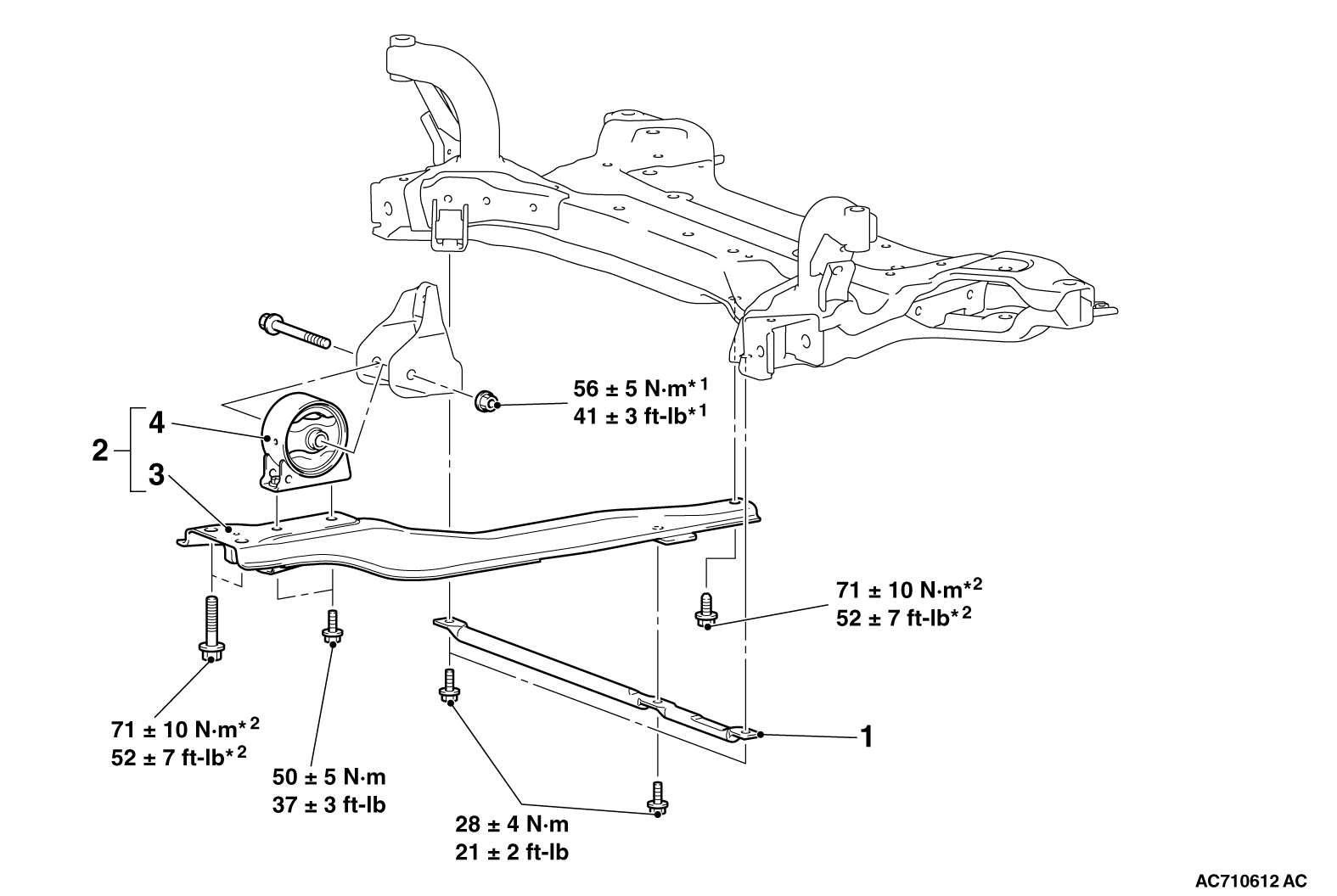

			Removal steps
		1.	Front axle crossmember bar
		2.	Centermember and front roll stopper assembly
		3.	Centermember
	>>A<<	4.	Front roll stopper

INSTALLATION SERVICE POINT

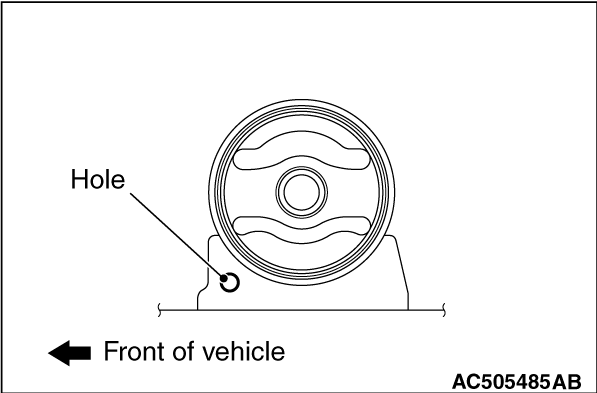

>>A<< FRONT ROLL STOPPER INSTALLATION

Install the front roll stopper so that the hole faces toward the vehicle front.
