DTC P1723: Abnormality in Speed Sensor System Function















DIAGNOSTIC FUNCTION


TCM detects the abnormal wave pattern of the speed sensor signal.

DESCRIPTIONS OF MONITOR METHODS




MONITOR EXECUTION




MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)


Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
Sensor (The sensor below is determined to be normal)

LOGIC FLOW CHARTS (Monitor Sequence)





DTC SET CONDITIONS


Check Conditions
Judgment Criteria

OBD-II DRIVE CYCLE PATTERN


Ignition switch : ON (start the engine and keep it for 10 seconds or more)

PROBABLE CAUSES




DIAGNOSTIC PROCEDURE

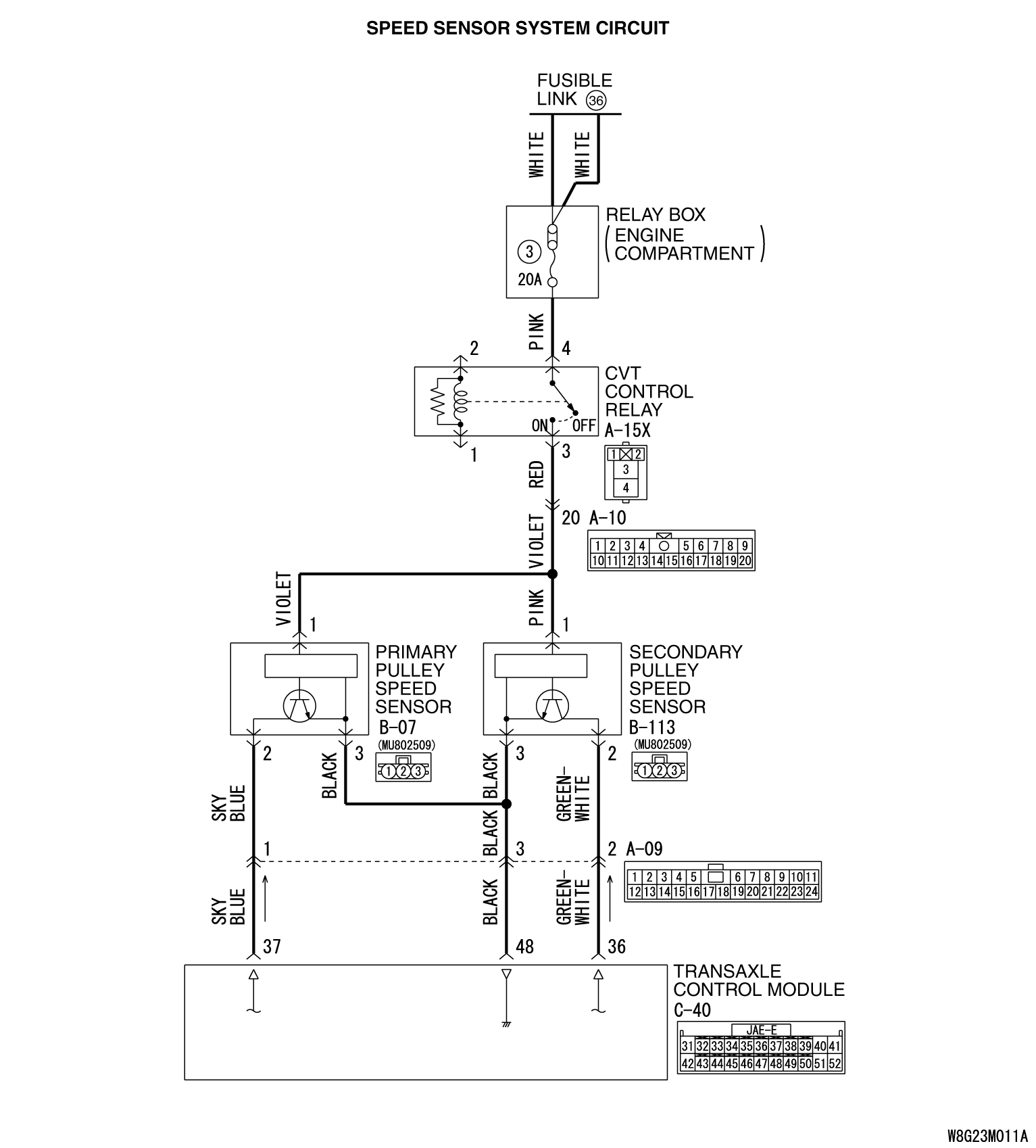

STEP 1. Check the following connector:



  • C-40 TCM connector
  • B-07 Primary pulley speed sensor connector
  • B-113 Secondary pulley speed sensor connector
Check for the connection with terminals.

Q. Is the check result normal?

Go to Step 2.
Repair the defective connector.

STEP 2. Use an oscilloscope to measure the wave patterns of the primary pulley speed sensor and secondary pulley speed sensor.


Refer to .

Q. Is the check result normal?

Go to Step 3.
Replace the primary pulley speed sensor or secondary pulley speed sensor.

STEP 3. Symptom recheck after erasing diagnosis code


Q. Is the check result normal?

Intermittent malfunction
Replace TCM.
