DTC P1706: Malfunction of Throttle Signal

DIAGNOSTIC FUNCTION

TCM detects the abnormality in the throttle position signal sent from the ECM.

DESCRIPTIONS OF MONITOR METHODS

The difference between the throttle position signal received from the ECM and the corresponding turnover value is 1.37 V or more, and this status continues for 1 second.

MONITOR EXECUTION

Transmission range:D

MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)

P0705: Malfunction of transmission range switch
P0715: Malfunction of primary pulley speed sensor
P0720: Malfunction of secondary pulley speed sensor
P0725: Malfunction of engine speed
P0741: Abnormality in lockup function
P0746: Abnormality in hydraulic control system function
P0841: Abnormality in line pressure sensor function

Sensor (The sensor below is determined to be normal)

Transmission range switch
Primary pulley speed sensor
Secondary pulley speed sensor

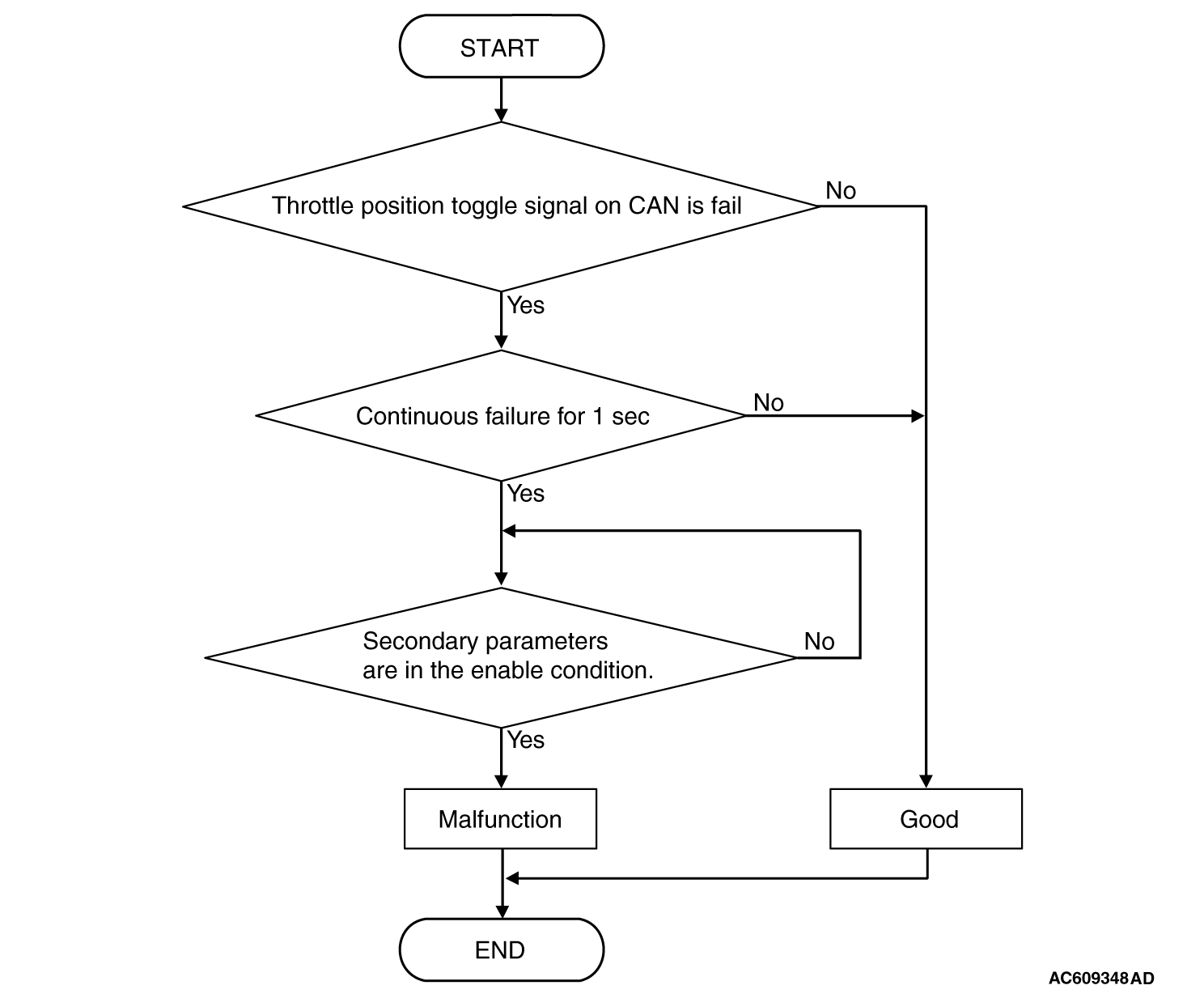

LOGIC FLOW CHARTS (Monitor Sequence)

DTC SET CONDITIONS

Check Conditions

Transmission range switch position: D.
Voltage of battery: 9 volts or more.
Voltage of battery: 16 volts or less.

Judgment Criteria

Throttle position toggle signal on CAN: fail. (1 second)

OBD-II DRIVE CYCLE PATTERN

Ignition switch : ON (start the engine and keep it for 10 seconds or more)

PROBABLE CAUSES

Malfunction of the CAN bus
Malfunction of engine system
Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics

Use M.U.T.-III to perform the CAN bus diagnosis.

Q. Is the check result normal?

	Go to Step 2.

	Repair the CAN bus lines (Refer to GROUP 54C - Troubleshooting, Diagnosis Code Chart ).

STEP 2. M.U.T.-III diagnosis code

Check if the engine-related diagnosis code is set.

Q. Is diagnosis code set?

	Diagnose the engine control system.

	Go to Step 3.

STEP 3. Symptom recheck after erasing diagnosis code

Q. Is the check result normal?

	Intermittent malfunction

	Replace TCM.
