DTC P0815: Malfunction of Paddle Shift Up Switch








DIAGNOSTIC FUNCTION


TCM detects that the paddle shift UP switch is stuck to ON.

JUDGEMENT CRITERIA


When the paddle shift UP switch being ON consecutively for 60 seconds is detected.

PROBABLE CAUSES



DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list
Item 54: Paddle switch (up)
OK: The service data changes in response to the paddle shift operation.

Q. Is the check result normal?
Intermittent malfunction
Go to Step 2.

STEP 2. Check the following connector:

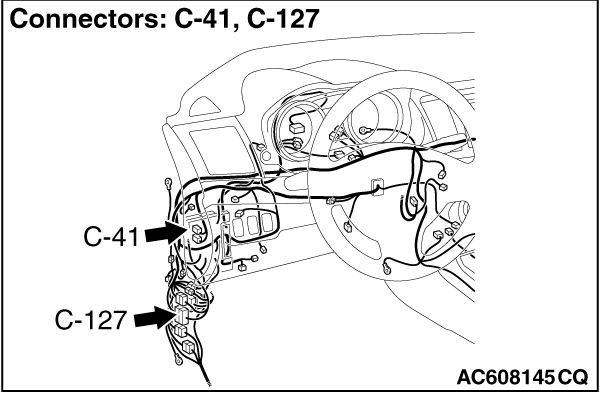

  • C-41 TCM connector

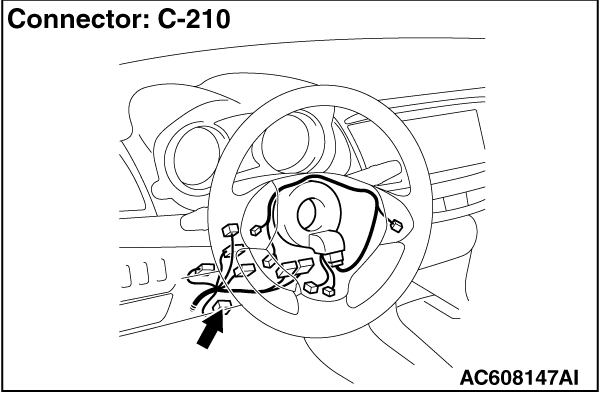

  • C-210 paddle shift switch connector
  • C-127 intermediate connector
Check the terminals for a contact status problem and internal short circuit.

Q. Is the check result normal?
Go to Step 3.
Repair the damaged connector.

STEP 3. Paddle shift switch single unit check
Refer to .

Q. Is the check result normal?
Go to Step 4.
Replace the paddle shift switch.

STEP 4. Check for short to ground in the wiring harness between the TCM connector and the paddle shift switch connector
Between C-41 TCM connector (terminal No.22) and C-210 paddle shift switch connector (terminal No.1)

Q. Is the check result normal?
Go to Step 5.
Repair the wiring harness.

STEP 5. Symptom recheck after erasing diagnosis code

Q. Is the check result normal?
Intermittent malfunction
Replace TCM.
