DTC P0720: Malfunction of Secondary Pulley Speed Sensor















DIAGNOSTIC FUNCTION


TCM determines that the malfunction is present when the secondary pulley speed sensor value changes abruptly or when there is a discrepancy between this sensor and other sensors in sensor reading.

DESCRIPTIONS OF MONITOR METHODS




MONITOR EXECUTION




MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)


Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
Sensor (The sensor below is determined to be normal)

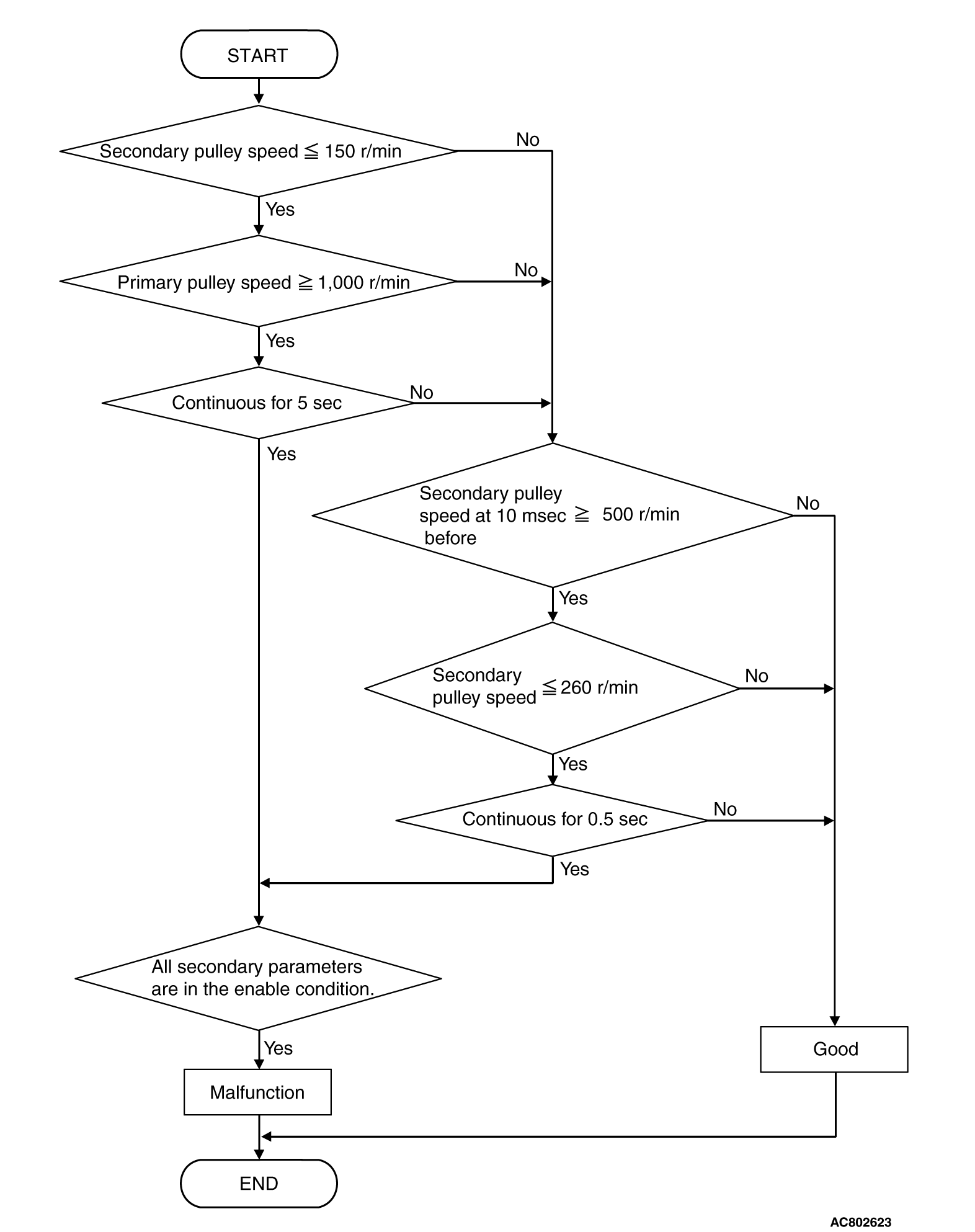

LOGIC FLOW CHARTS (Monitor Sequence)





DTC SET CONDITIONS


Check Conditions
Judgment Criteria

OBD-II DRIVE CYCLE PATTERN


transmission range: D (Drive the vehicle for 10 seconds or more while the accelerator opening angle is 20% or more)

PROBABLE CAUSES




DIAGNOSTIC PROCEDURE


STEP 1. M.U.T.-III data list


Item 2: Secondary speed sensor signal (Refer to Data List Reference Table .)

Q. Is the check result normal?

Intermittent malfunction
Go to Step 2.

STEP 2. Check the following connector:



  • C-40 TCM connector

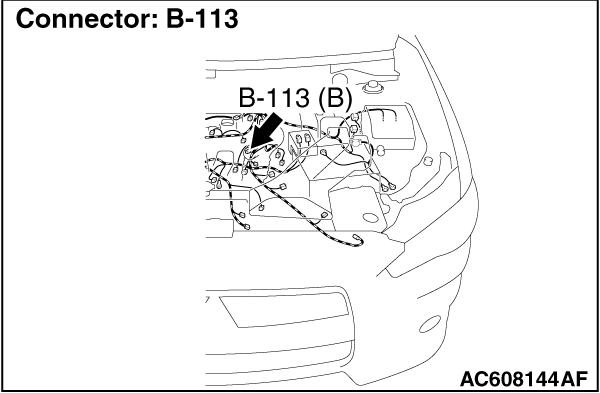

  • B-113 Secondary pulley speed sensor connector
  • A-10 Intermediate connector
Check the terminals for a contact status problem and internal short circuit.

Q. Is the check result normal?

Go to Step 3.
Repair the defective connector.

STEP 3. Check for open circuit in the wiring harness between the secondary pulley speed sensor connector and the TCM connector.


Between B-113 secondary pulley speed sensor connector (terminal No.3) and C-40 TCM connector (terminal No.48)

Q. Is the check result normal?

Go to Step 4.
Repair the wiring harness.

STEP 4. Check for open circuit and short to ground in the wiring harness between the secondary pulley speed sensor connector and the TCM connector


Between B-113 secondary pulley speed sensor connector (terminal No.2) and C-40 TCM connector (terminal No.36)

Q. Is the check result normal?

Go to Step 5.
Repair the wiring harness.

STEP 5. Check for open circuit in the wiring harness between the CVT control relay and the secondary pulley speed sensor connector.


Between A-15X CVT control relay (terminal No.3) and B-113 secondary pulley speed sensor connector (terminal No.1)

Q. Is the check result normal?

Go to Step 6.
Repair the wiring harness.

STEP 6. Secondary pulley speed sensor check


Visually check the tip of the sensor for foreign materials or damage.

Q. Is the check result normal?

Go to Step 7.
Repair.

STEP 7. Diagnosis code recheck after replacing the secondary pulley speed sensor


Q. Is the check result normal?

The procedure is complete.
Replace TCM.
