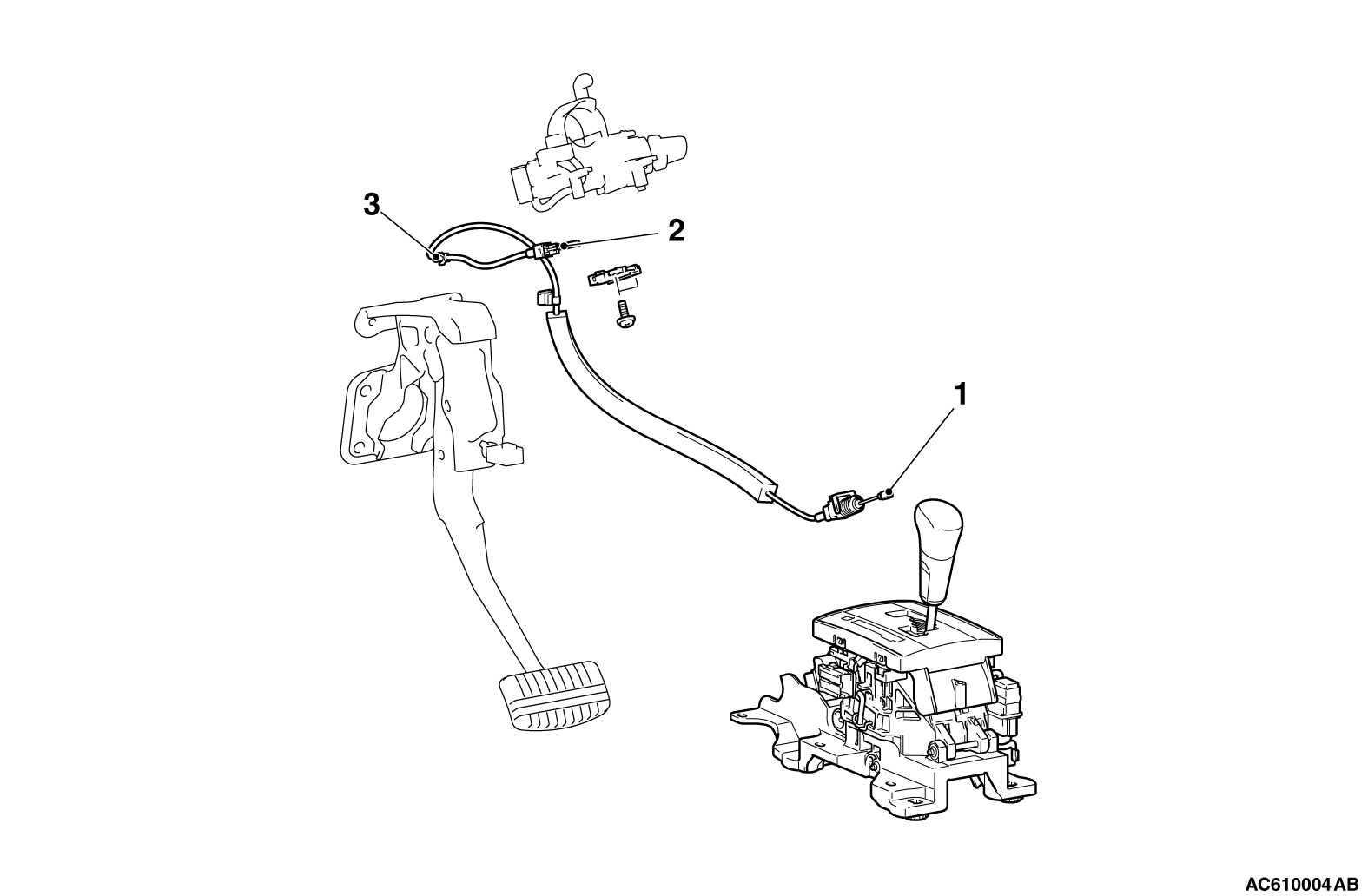

Turn the ignition switch to the "ACC" position and then pull the key interlock cable out from the ignition key cylinder.
|
|
|
Turn the ignition switch to the "ACC" position and then install the key interlock cable to the ignition key cylinder.
|
|
|
1.Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.
|
|
2.Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
3.Install the adjuster case with its lock guide pulled up (unlocked).
4.Securely push down the lock guide to lock it.
| note |
The lock position of the key interlock cable is automatically adjusted by a spring.
|
|
