DTC P0715: Input shaft 1 (odd number gear axle) speed sensor system (Output high range out)



caution
  • If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
  • Whenever the ECU is replaced, ensure that the CAN bus lines are normal.

DIAGNOSTIC FUNCTION


TC-SST-ECU checks that the input shaft 1 (odd number gear axle) speed sensor is normal.

DESCRIPTIONS OF MONITOR METHODS


The output of the input shaft 1 (odd number gear axle) is determined to be too high.

MONITOR EXECUTION




MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)


Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
Sensor (The sensor below is determined to be normal)

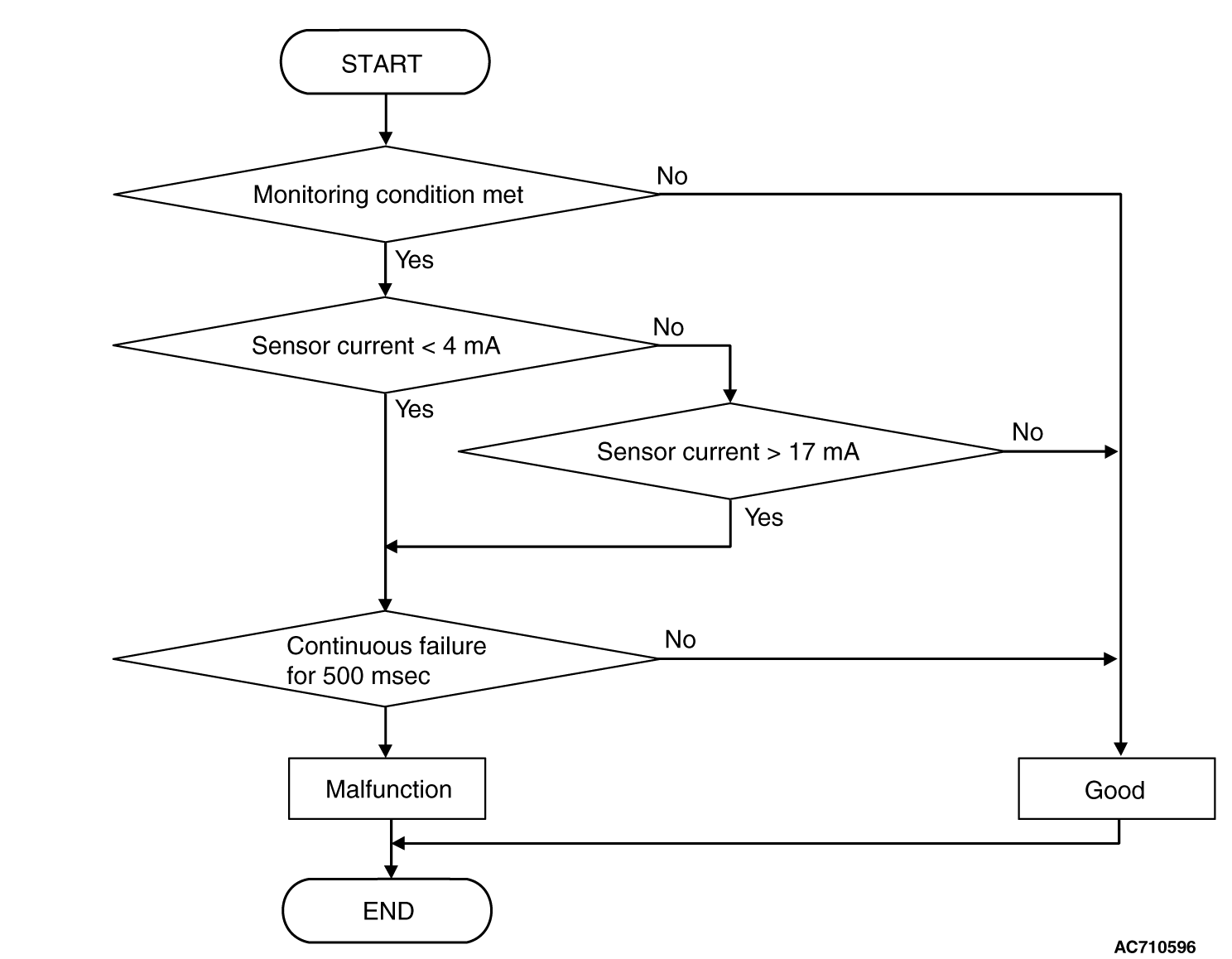

LOGIC FLOW CHARTS (Monitor Sequence)





DTC SET CONDITIONS


Check Conditions
JUDGMENT CRITERIA

OBD-II DRIVE CYCLE PATTERN


The sensor current remains 17 mA or less for 500 milliseconds.

PROBABLE CAUSES




DIAGNOSTIC PROCEDURE


Required Special Tools:
  • MB991958 Scan Tool (M.U.T.-III Sub Assembly)

    • MB991824: Vehicle Communication Interface (V.C.I.)
    • MB991827 M.U.T.-III USB Cable
    • MB991910 M.U.T.-III Main Harness A

STEP 1. Scan tool CAN bus diagnostics


Using scan tool MB991958, diagnose the CAN bus lines.

Q. Is the check result normal?

Go to Step 2.
Repair the CAN bus lines. (Refer to GROUP 54C - Troubleshooting .) After repairing the CAN bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.


After 5 or more seconds have passed with the engine idle status, check that the DTC is reset.

Q. Is DTC No. P0715 set?

Replace the transaxle assembly. (Refer to .)
Intermittent malfunction. (Refer to GROUP 00 - How to Cope with Intermittent Malfunction .)
