DTC P0118: Engine Coolant Temperature Circuit High Input

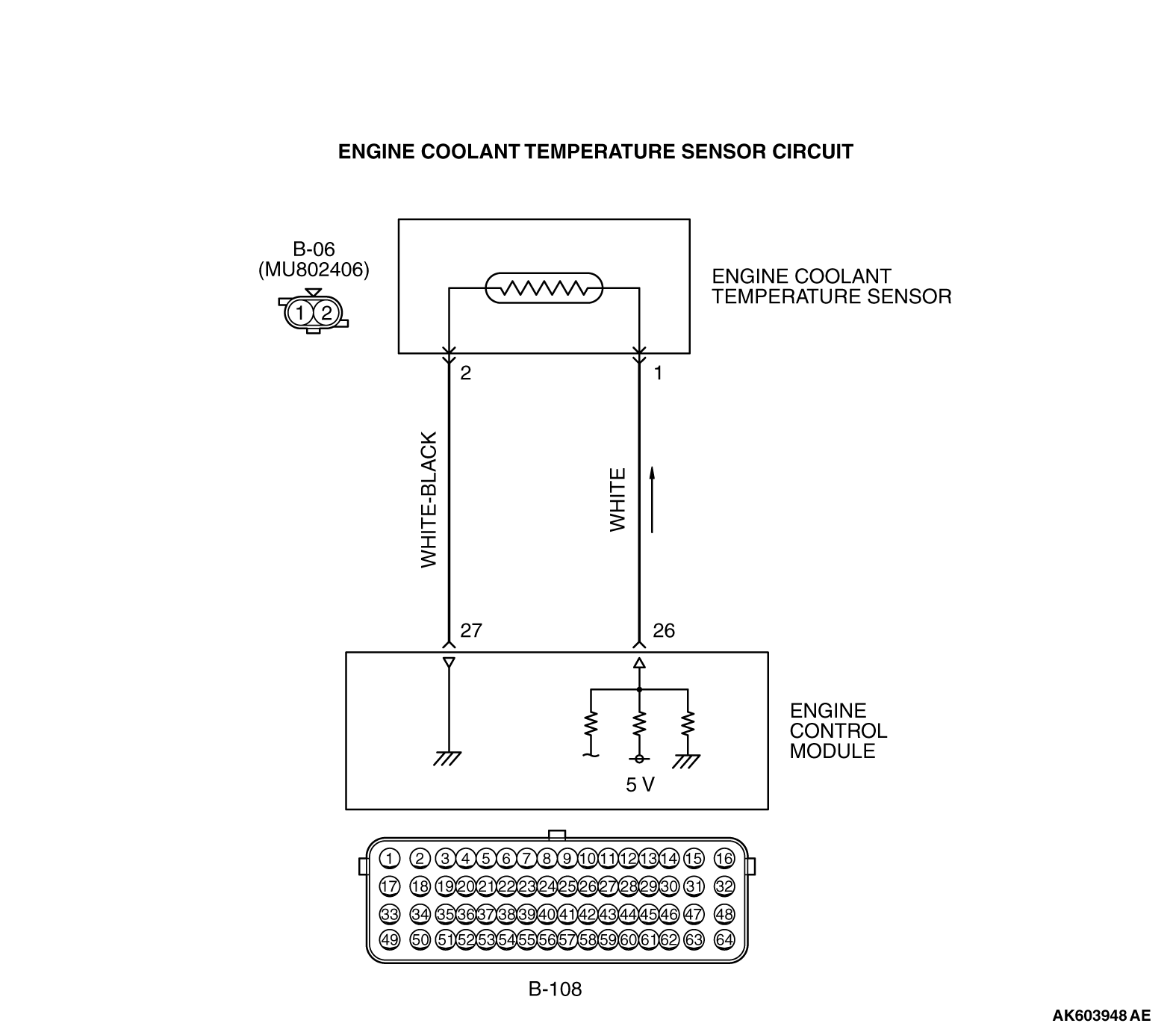

CIRCUIT OPERATION




TECHNICAL DESCRIPTION




DESCRIPTIONS OF MONITOR METHODS




MONITOR EXECUTION




MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)


Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
Sensor (The sensor below is determined to be normal)

DTC SET CONDITIONS

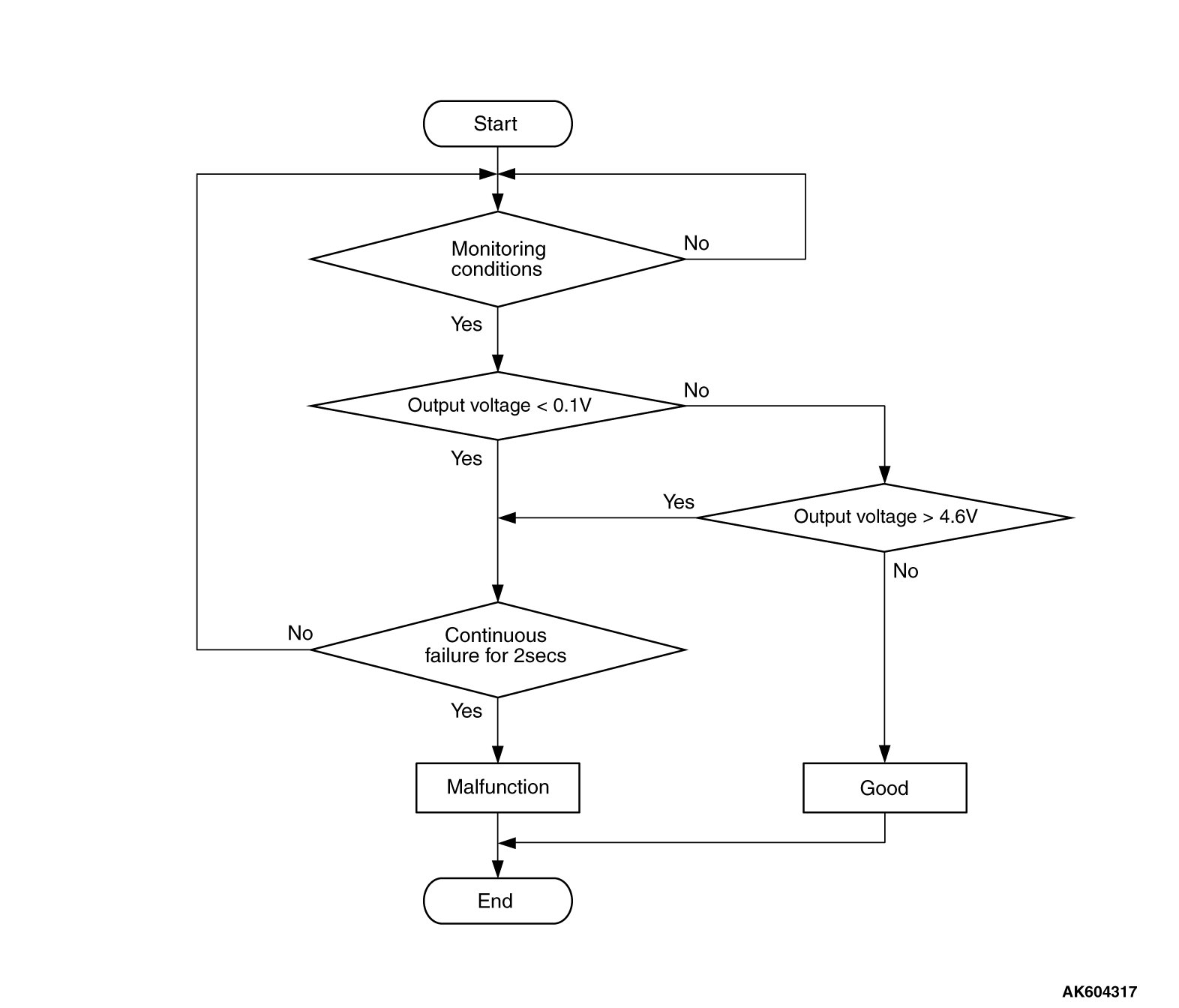

Logic Flow Chart


Check Condition
Judgement Criterion

FAIL-SAFE AND BACKUP FUNCTION




OBD-II DRIVE CYCLE PATTERN




TROUBLESHOOTING HINTS (The most likely causes for this code to be set are: )




DIAGNOSIS


Required Special Tools:
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)

    • MB991824: V.C.I.
    • MB991827: USB Cable
    • MB991910: Main Harness A
  • MB992110: Power Plant ECU Check Harness

STEP 1. Using scan tool MB991958, check data list item 6: Engine Coolant Temperature Sensor.



caution To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

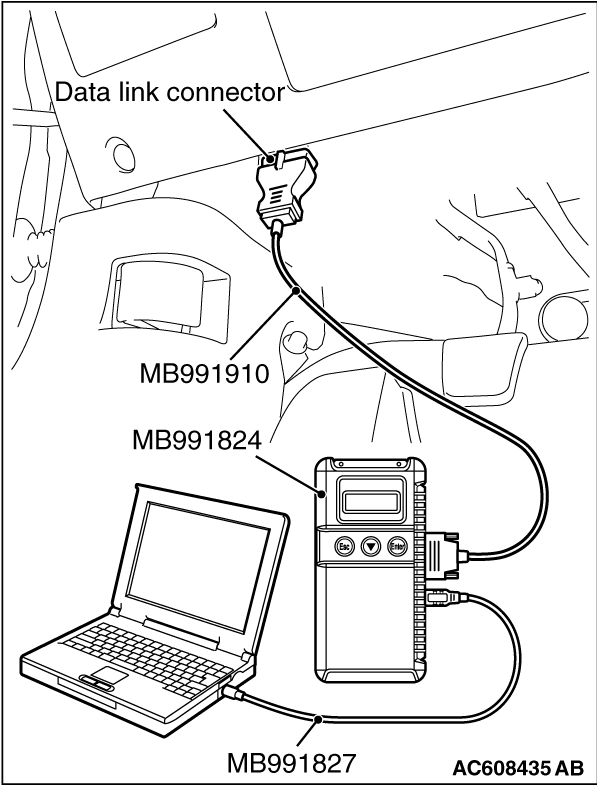

(1)Connect scan tool MB991958 to the data link connector.
(2)Turn the ignition switch to the "ON" position.
(3)Set scan tool MB991958 to the data reading mode for item 6, Engine Coolant Temperature Sensor.

  • The engine coolant temperature and temperature shown with the scan tool should approximately match.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the sensor operating properly?

It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .

Go to Step 2.

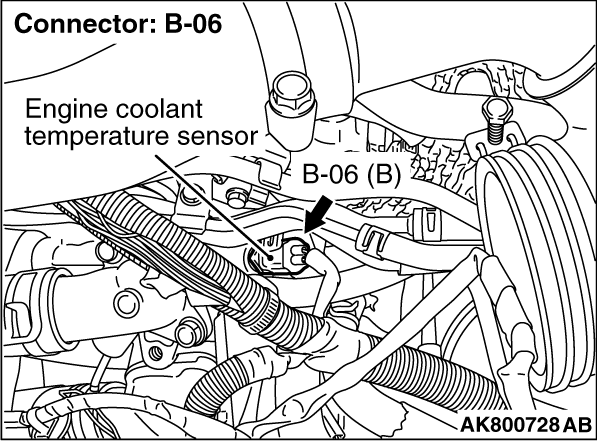

STEP 2. Check harness connector B-06 at engine coolant temperature sensor for damage.


Q. Is the harness connector in good condition?

Go to Step 3.
Repair or replace it. Refer to GROUP 00E, Harness Connector Inspection . Then go to Step 10.

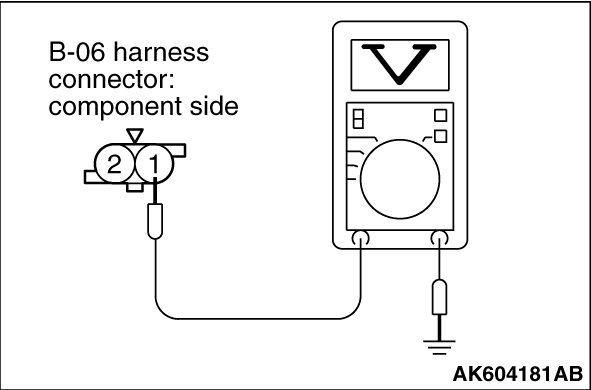

STEP 3. Measure the sensor supply voltage at engine coolant temperature sensor harness side connector B-06.


(1)Disconnect the connector B-06 and measure at the harness side.
(2)Turn the ignition switch to the "ON" position.

(3)Measure the voltage between terminal No. 1 and ground.

  • Voltage should be between 4.5 and 4.9 volts.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage between 4.5 and 4.9 volts?

Go to Step 6.

Go to Step 4.

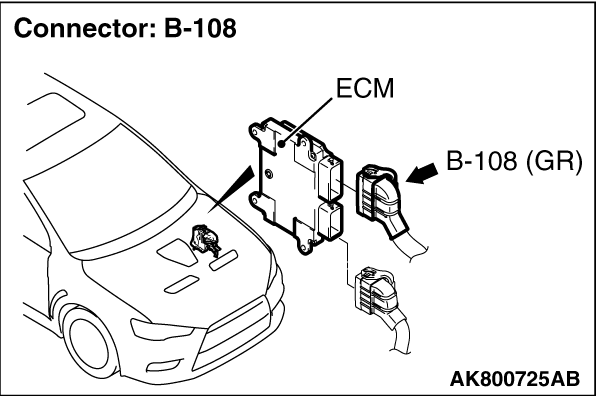

STEP 4. Check harness connector B-108 at ECM for damage.


Q. Is the harness connector in good condition?

Go to Step 5.
Repair or replace it. Refer to GROUP 00E, Harness Connector Inspection . Then go to Step 10.

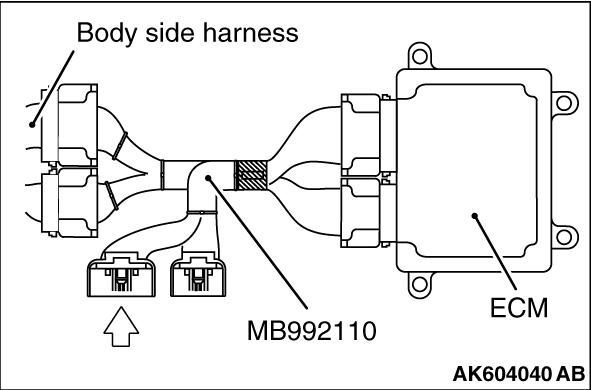

STEP 5. Measure the sensor supply voltage at ECM connector B-108 by using power plant ECU check harness special tool MB992110.



(1)Disconnect all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
(2)Disconnect the engine coolant temperature sensor connector B-06.
(3)Turn the ignition switch to the "ON" position.

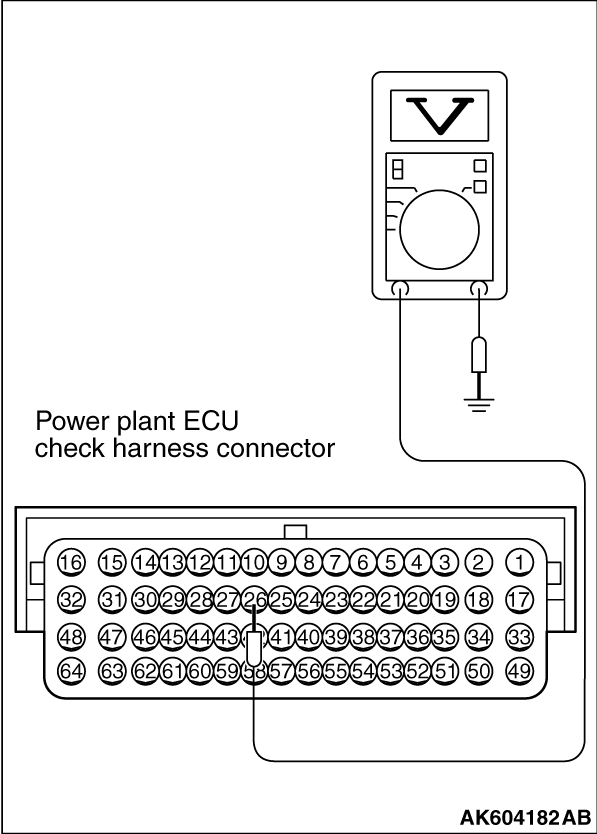

(4)Measure the voltage between terminal No. 26 and ground.

  • Voltage should be between 4.5 and 4.9 volts.
(5)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage between 4.5 and 4.9 volts?

Repair harness wire between engine coolant temperature sensor connector B-06 (terminal No. 1) and ECM connector B-108 (terminal No. 26) because of open circuit. Then go to Step 10.

Replace the ECM. When the ECM is replaced, register the ID code. Refer to GROUP 42B, Diagnosis - ID Code Registration Necessity Judgment Table <Vehicles with KOS> or GROUP 42C, Diagnosis - ID Codes Registration Judgment Table <Vehicles with WCM> . Then go to Step 10.

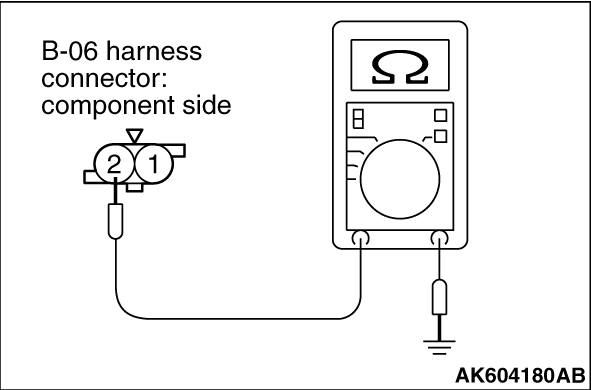

STEP 6. Check the continuity at engine coolant temperature sensor harness side connector B-06.


(1)Disconnect the connector B-06 and measure at the harness side.

(2)Check for the continuity between terminal No. 2 and ground.

  • Continuity (2 ohms or less)

Q. Does continuity exist?

Go to Step 9.

Go to Step 7.

STEP 7. Check harness connector B-108 at ECM for damage.


Q. Is the harness connector in good condition?

Go to Step 8.
Repair or replace it. Refer to GROUP 00E, Harness Connector Inspection . Then go to Step 10.

STEP 8. Check for open circuit between engine coolant temperature sensor connector B-06 (terminal No. 2) and ECM connector B-108 (terminal No. 27).


Q. Is the harness wire in good condition?

Replace the ECM. When the ECM is replaced, register the ID code. Refer to GROUP 42B, Diagnosis - ID Code Registration Necessity Judgment Table <Vehicles with KOS> or GROUP 42C, Diagnosis - ID Codes Registration Judgment Table <Vehicles with WCM> . Then go to Step10.
Repair it. Then go to Step 10.

STEP 9. Check the engine coolant temperature sensor.


Refer to Engine Coolant Temperature Sensor Check .

Q. Is the engine coolant temperature sensor normal?

Replace the ECM. When the ECM is replaced, register the ID code. Refer to GROUP 42B, Diagnosis - ID Code Registration Necessity Judgment Table <Vehicles with KOS> or GROUP 42C, Diagnosis - ID Codes Registration Judgment Table <Vehicles with WCM> . Then go to Step 10.
Replace the engine coolant temperature sensor. Then go to Step 10.

STEP 10. Test the OBD-II drive cycle.


(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 .
(2)Check the diagnostic trouble code (DTC).

Q. Is DTC P0118 set?

Retry the troubleshooting.
The inspection is complete.
