REMOVAL AND INSTALLATION

caution

When the ECM is replaced, do not replace the immobilizer ECU (WCM) or KOS-ECU simultaneously. When multiple ECUs are to be replaced, always replace only one ECU at a time and complete necessary ID registration using scan tool (Refer to GROUP 42B, Diagnosis - ID Codes Registration Judgment Table ) <Vehicle with KOS installed> or (Refer to GROUP 42C, Diagnosis - ID Codes Registration Judgment Table ) <Vehicle with WCM installed>.
After the ECM replacement, idling speed may be unstable because the MFI engine learning is not completed. To make it stable, let the system learn the idling (Refer to GROUP 00, Precautions Before Service - Engine Idling Learning Procedure .)
After the replacement of the ECM, register a key code using scan tool [Refer to GROUP 00, Precautions Before Service - How to Perform Vehicle Identification Number (VIN) Writing .]
When the ECM is replaced, saved the vehicle identification number and perform the variant coding.

Pre-removal and post-installation operation

Air Cleaner Assembly Removal and Installation (Refer to GROUP 15, Air Cleaner .)

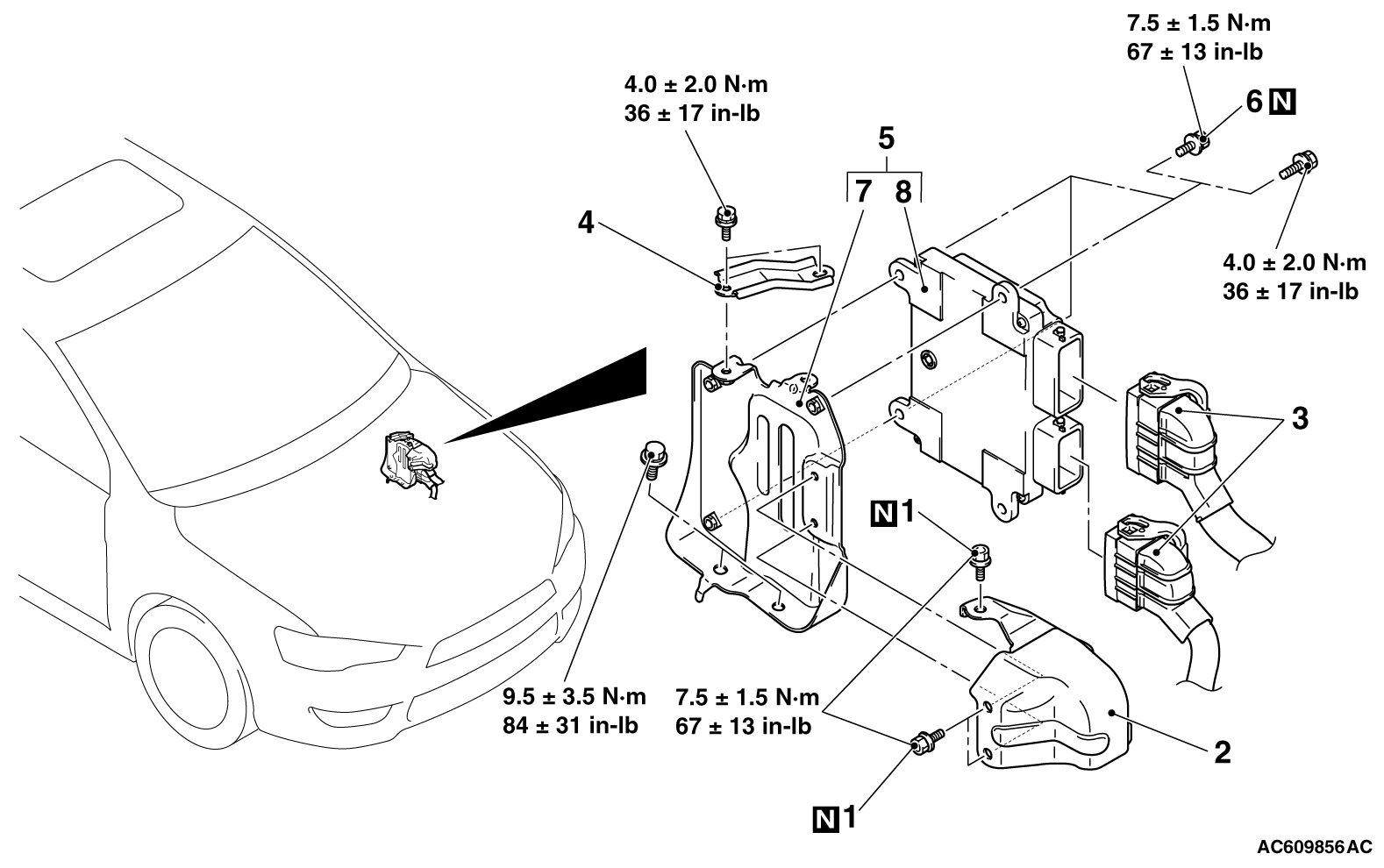

			Removal steps
	>>B<<	·	Initialization operation.<only at installation>
<<A>>	>>A<<	1.	Break-off bolts <vehicles for Canada>
		2.	ECM connector cover <vehicles for Canada>
		3.	ECM connector connection
		4.	ECM stay
		5.	ECM and ECM bracket assembly
<<A>>	>>A<<	6.	Break-off bolts <vehicles for Canada>
		7.	ECM bracket
		8.	ECM

REMOVAL SERVICE POINT

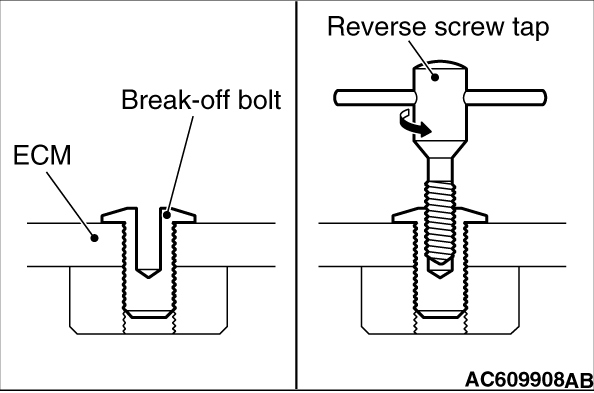

1.Drill in the break-off bolt a hole deep enough for the tap to stand.
2.Remove the break-off bolt with a left-hand tap.

Tighten until the head of break-off bolt is broken off.

Turn the ignition switch to the "ON" position and then to "LOCK" (OFF) position and hold it for at least 10 seconds.
