Drive Mode Select Switch


FUNCTIONS WITHIN THE SYSTEM
The drive mode selector changes the vehicle mode of the power train, combination meter, chassis function, driver assistant system, AWD function.

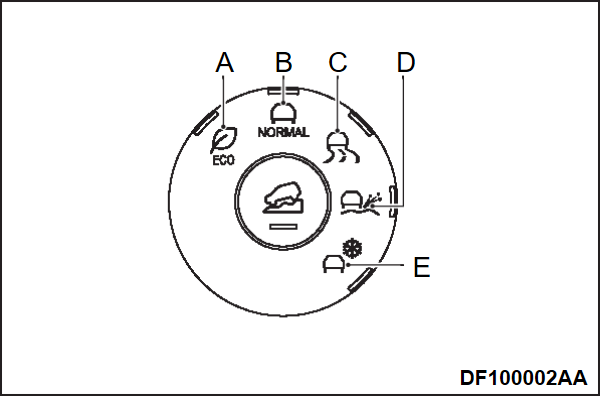

  • 2WD models

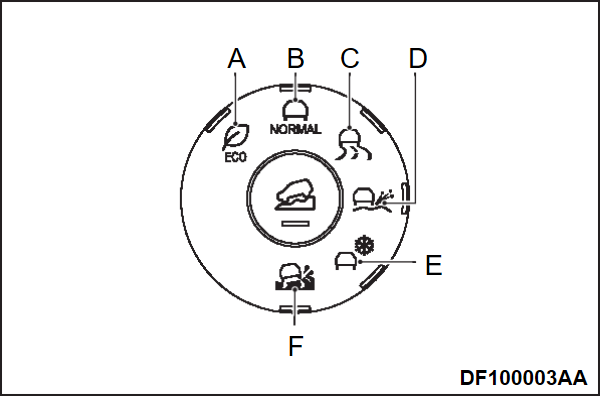

  • AWD models
    AECO
    BNORMAL
    CTARMAC
    DGRAVEL
    ESNOW
    FMUD


INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM
Drive mode select switch detected the mode status.


INDIVIDUAL OPERATION
Transmit the drive mode switch signal to BCM.


PARTS LOCATION
Refer to Component Parts Location.
