System Description


BRAKING CONTROL

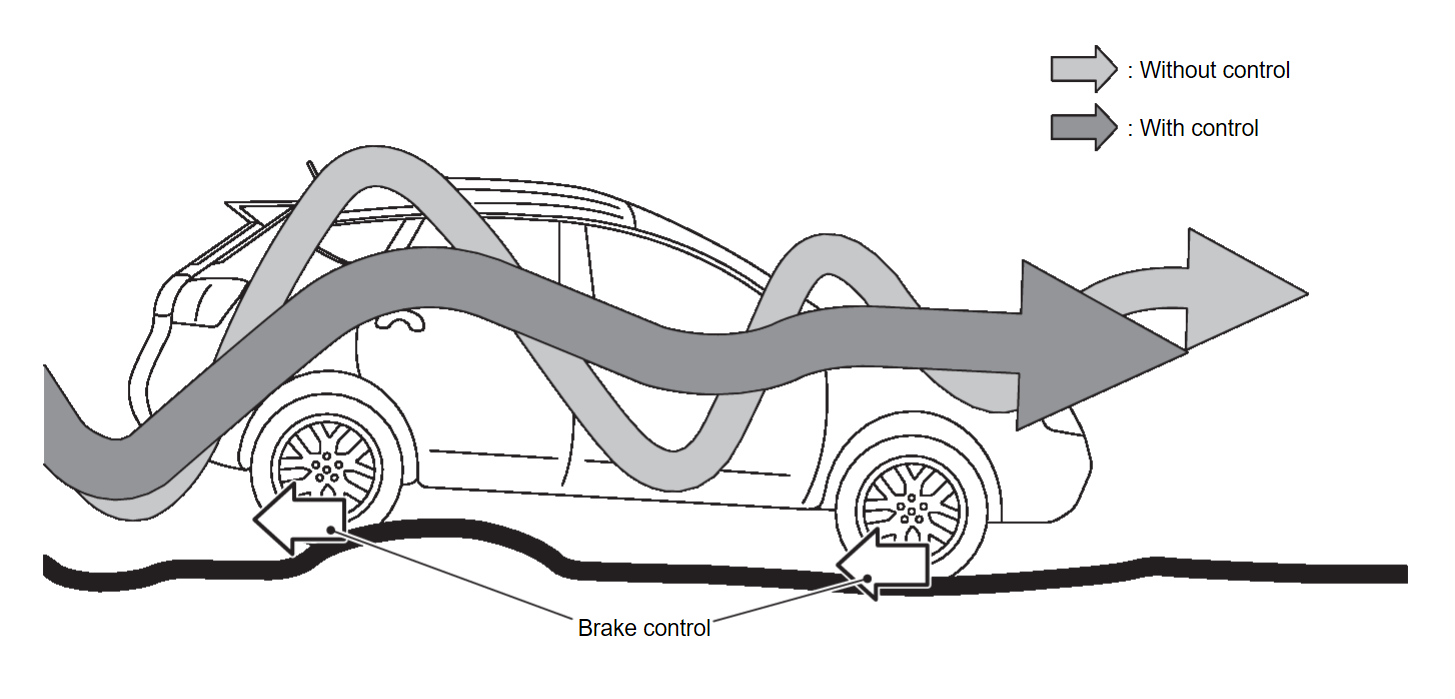

  • Brake control - Enhances ride comfort by restraining upper body movement with small amount of brake control when driving on bumpy roads.

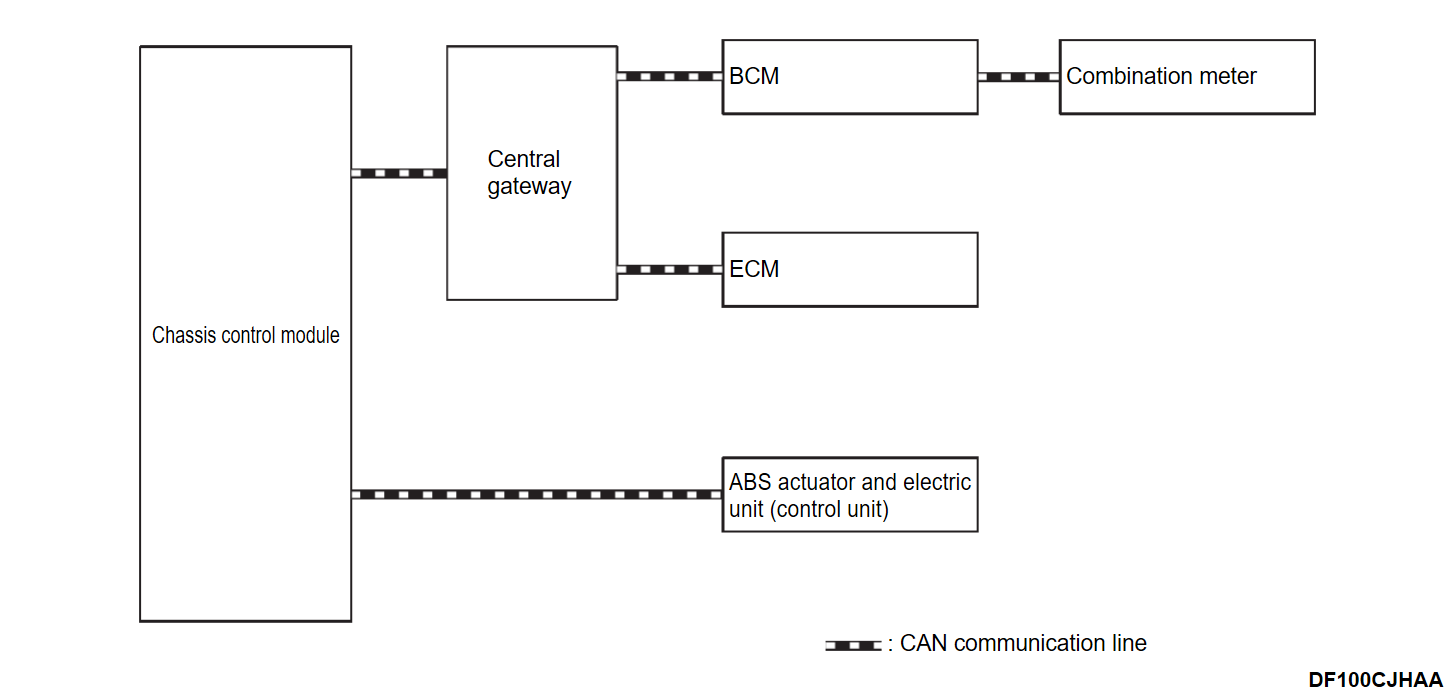

SYSTEM DIAGRAM


INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
Component partsSignal description
ECMMainly transmits the following signals to chassis control module via CAN communication.
  • Accelerator pedal position signal
ABS actuator and electric unit (control unit)Mainly transmits the following signals to chassis control module via CAN communication.
  • Front LH wheel speed signal
  • Front RH wheel speed signal
  • Rear LH wheel speed signal
  • Rear RH wheel speed signal
  • ABS operation signal
  • TCS operation signal
  • ASC operation signal
  • Vehicle speed signal
  • Decel G signal
  • Driver brake signal
  • Side G signal
  • ASC OFF signal
  • Brake fluid pressure signal
  • ASC status signal
  • ABS malfunction signal
  • TCS malfunction signal
  • ASC malfunction signal
Mainly receives the following signal from chassis control module via CAN communication.
  • Brake torque request signal
Combination meterMainly receives the following signals from chassis control module via CAN communication.
  • Meter display signal
