System Description

This function senses driving based on the driver’s steering and acceleration/braking patterns, and controls brake pressure at individual wheels to aid tracing at corners and help smooth vehicle response.
Amount of brake control is changed based on drive mode selector switch.
When the turn OFF the ASC function, AYC function is also turned OFF.

When AYC function is not functioning properly, the master warning light illuminates, and Warning message will also appear on information display.

note

Always drive carefully and attentively.
AYC function is not always activated in any driving conditions.
When the AYC function is activated, the driver may feel some vibration on the brake pedal, hear operating sound, or have feel of the deceleration. This is not a malfunction because it is caused by AYC function that is normally operated.

OPERATION CHARACTERISTICS

This system enhances vehicle cornering performance and vehicle stability with management ofvehicle turning power (yaw moment) by controlling the drive power difference of the leftand right wheels and the braking force when the vehicle does not turn in response to steeringinput, such as when the steering wheel is turned quickly or when driving on slippery road.

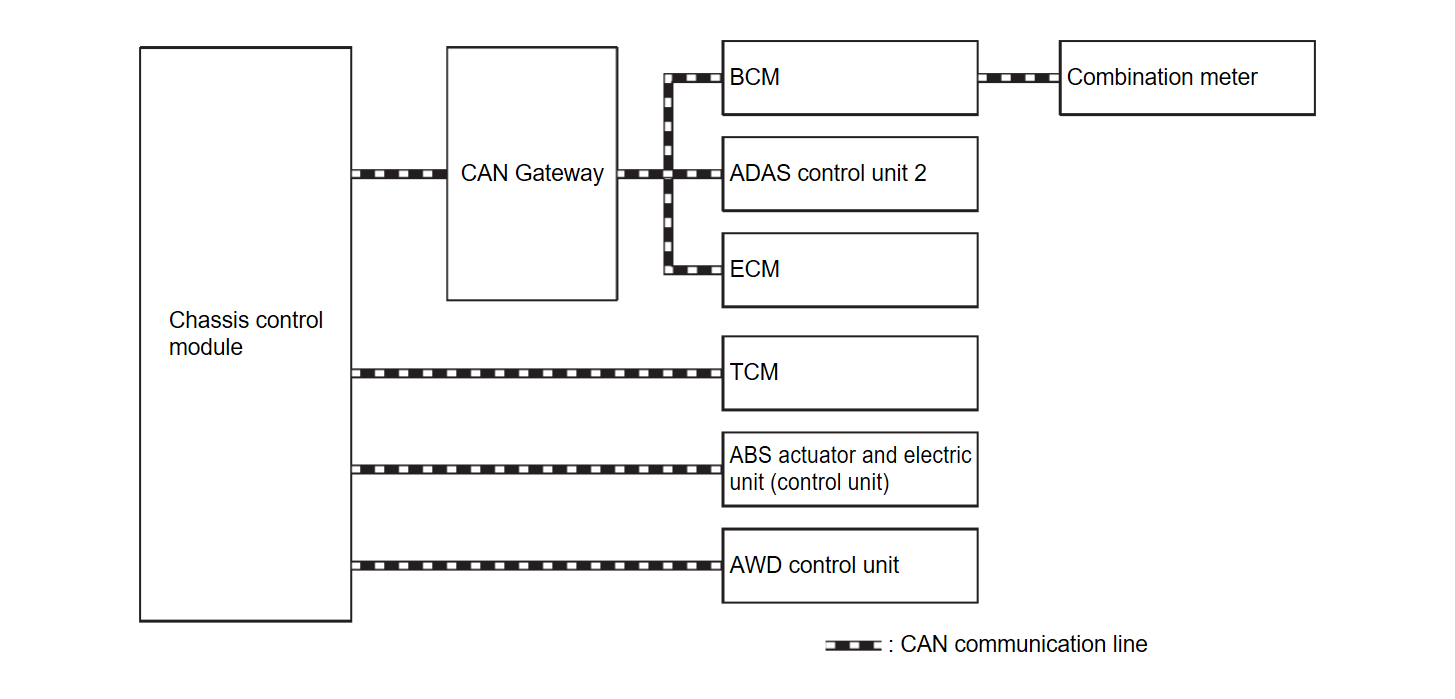

SYSTEM DIAGRAM

note	AWD control unit is applied to AWD models.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component parts	Signal description
ECM	Mainly transmits the following signals to chassis control module via CAN communication. Accelerator pedal position signal Engine torque signal Brake torque request signal
ABS actuator and electric unit (control unit)	Mainly transmits the following signals to chassis control module via CAN communication. Front LH wheel speed signal Front RH wheel speed signal Rear LH wheel speed signal Rear RH wheel speed signal TCS operation signal ASC operation signal Side G signal ASC OFF signal Brake fluid pressure signal Steering angle signal ASC status signal Driver brake signal ABS malfunction signal TCS malfunction signal ASC malfunction signal Mainly receives the following signal from chassis control module via CAN communication. Brake torque request signal Yaw moment request signal
TCM	Mainly transmits the following signals to chassis control module via CAN communication. Current gear position signal
Combination meter	Mainly receives the following signals from chassis control module via CAN communication. Meter display signal
AWD control unit	Mainly transmits the following signals to chassis control module via CAN communication. Wheel torque signal
ADAS control unit	Mainly transmits the following signals to chassis control module via CAN communication. Brake torque request signal Yaw moment request signal
