Telematics Switch
Component Function Within The System
The telematics switch is connected to TCU and transmits an operation signal.

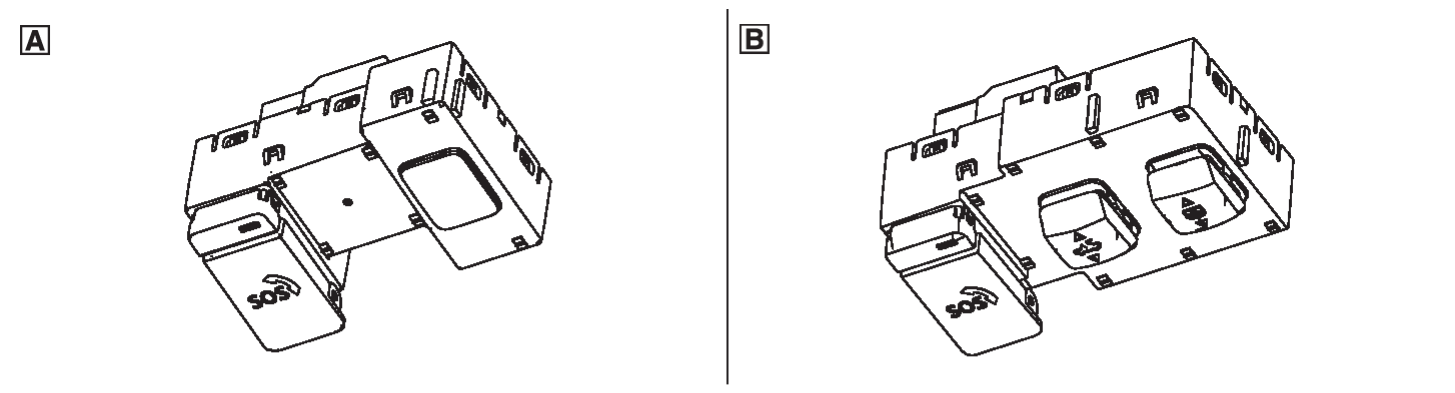

Models without sunroof
Models with sunroof
Individual Component Function
Inputs the operating status of the switch to the TCU.
Turns ON / Blinks / turns OFF the LED according to the signal from the TCU.
Component Operation
The state of LED (ON/Blink/OFF) shows the status of SOS call.
LED ON
:SOS Call available
LED Blink
:SOS Call in communication
LED OFF
:Out of service area or system error
Component Parts Location
The Telematics switch is located on the map light assembly. Refer to
Component Parts Location
.
