Telematics Antenna
Component Function Within The System
Ensure the transmission and reception performance of the information necessary for the telematics system.
Individual Component Function
The telematics antenna consists of the TEL antenna and GPS antenna.
Component Operation
Power is supplied from the TCU.
Amplify radio waves received from GPS satellites and transmit them to the TCU as GPS signals.
GPS signal is time information required for timer operation, and are used to obtain the vehicle position information.
Component Parts Location
The telematics antenna is installed in the instrument panel. Refer to

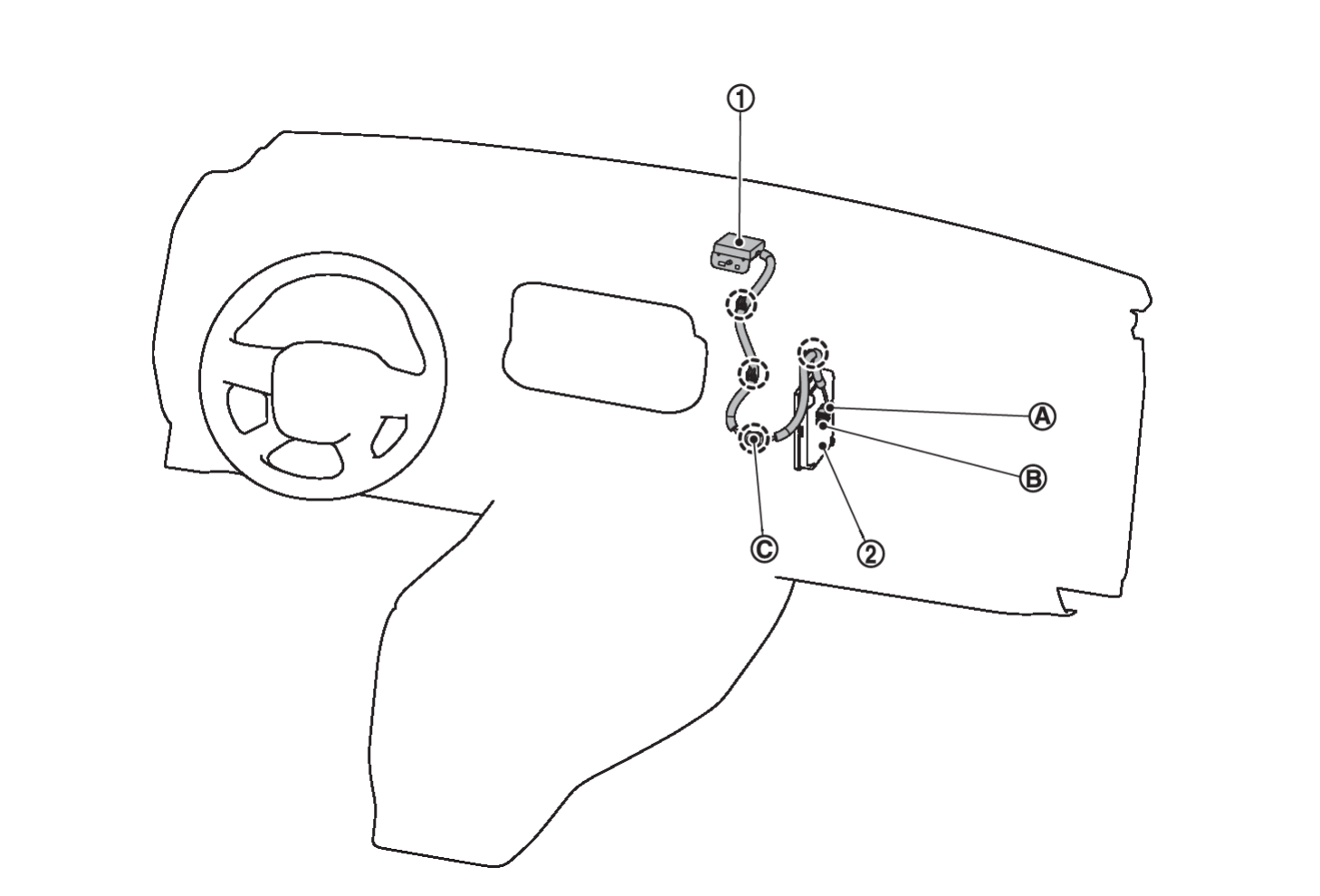

Component Parts Location
.

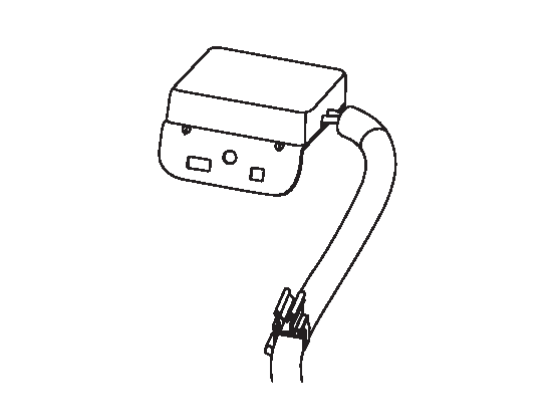

Feeder Layout
Telematics antenna
TCU
Connector M174
Connector M175
Connector M176
