Air Bag Diagnosis Sensor Unit
- Air bag diagnosis sensor unit

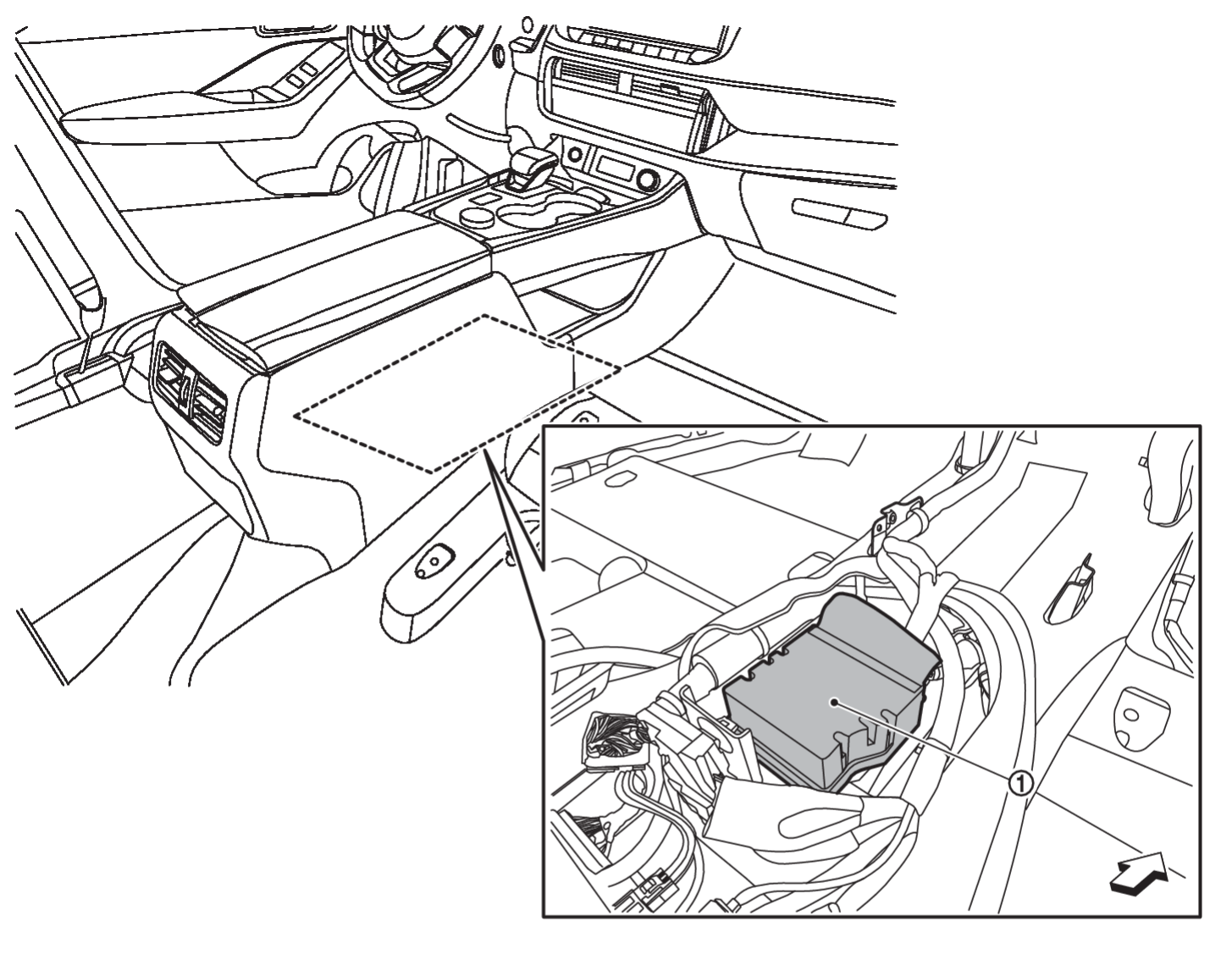

is installed to front seat center portion (under center console). Air bag diagnosis sensor unit integrates control functions of driver air bag, passenger air bag, driver knee air bag, passenger knee air bag, front side air bag, front center air bag, rear side air bag, curtain air bag and seat belt pre-tensioner. | : Vehicle front |
- Air bag diagnosis sensor unit integrates frontal collision G sensor, frontal collision safing sensor, and side collision safing sensor.
- Air bag diagnosis sensor unit has a function that judges impact due to frontal and side collisions exceeding the specified limit of the vehicle. Air bag diagnosis sensor unit also has an auxiliary power supply function that supplements battery power supply in the event battery is damaged in a collision.
- Air bag diagnosis sensor unit diagnoses electric system of entire air bag system. Self-diagnosis function is adopted, which indicates system malfunction by turning ON air bag warning light on combination meter when a malfunction is detected. Diagnosis using M.U.T.-III SE is possible.
