System Description

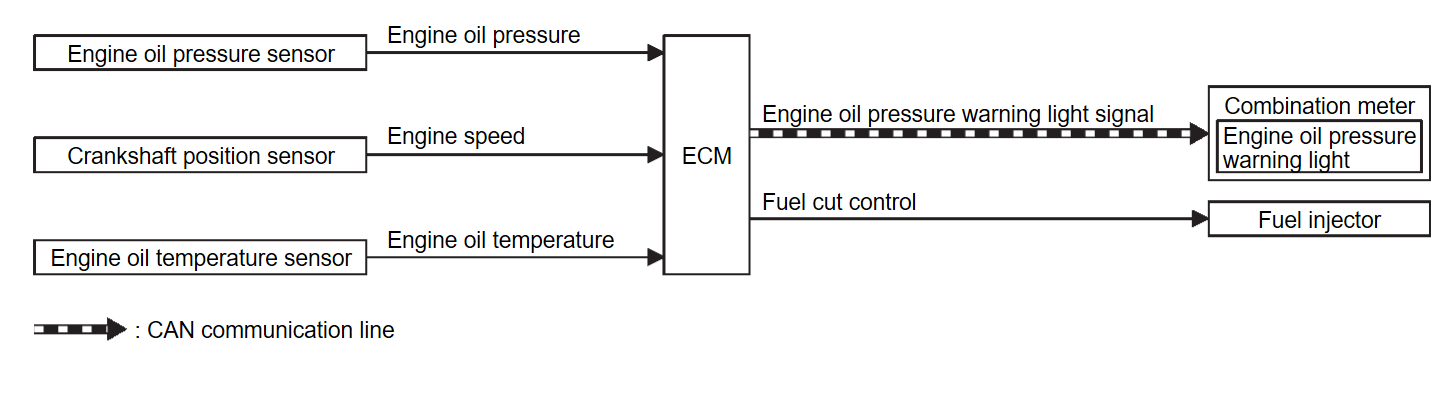

SYSTEM DIAGRAM
Component partsFunction
Engine oil pressure sensorRefer to Engine Oil Pressure Sensor.
Crankshaft position sensorRefer to Crankshaft Position Sensor.
Engine temperature sensorRefer to Engine Oil Temperature Sensor.
ECMRefer to ECM.
Combination meterIt receives the engine oil pressure waning light signal from ECM via CAN communication.
Fuel injectorRefer to Fuel Injector.


INPUT/OUTPUT SIGNAL CHART
SensorInput signal to ECMECM functionActuator
Engine oil pressure sensorEngine pressureEngine protection control
  • Oil pressure warning light signal
  • FUel cut control
Combination meter
  • Oil pressure warning light
Crankshaft position sensorEngine speed
Engine oil temperature sensorEngine oil temperature


SYSTEM DESCRIPTION
  • The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pressure by the oil pressure warning light a before the engine becomes damaged.
  • When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits an oil pressure warning light signal to the combination meter.The combination meter turns ON the oil pressure warning light, according to the signal.
    Decrease in engine oil pressureEngine speedCombination meterFuel cut
    Oil pressure warning light
    DetectionLess than 1,000 rpmON*NO
    1,000 rpm or moreONYES
    *: When detecting a normal engine oil pressure, ECM turns OFF the oil pressure warning light.
